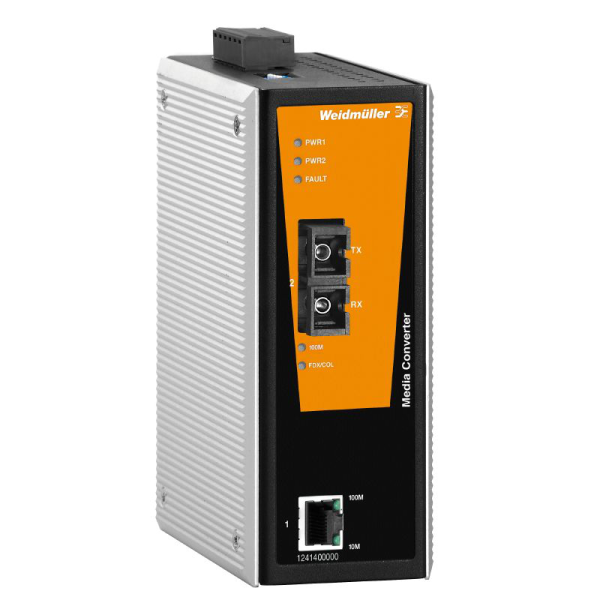

IE-MC-VL-1TX-1SC
SKU: 1241400000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Industrial Fast Ethernet media converter:
10/100BaseT(X) auto-MDI/MDI-X and auto-negotiation.
LFP stands for Link Fault Pass-Through.
Notification in case of port or power outage.
Inputs from redundant power supplies.
Working temperature range: -40 to 75 °C (T models).
Intended for use in Class 1 Div. 2/A Tex Zone 2 regions at risk of explosion.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Media converter, Fast Ethernet.
Quantity: 1.
Depth: 105 mm.
Height: 135 mm.
Width: 53.6 mm.
Storage temperature: -40 °C...85 °C.
Operating temperature range: 0 °C...60 °C.
Environmental conditions:
Humidity: 5 to 95 % (non-condensing).
Operating temperature, max.: 60 °C.
Operating temperature, min.: 0 °C.
Storage temperature, max.: 85 °C.
Storage temperature, min.: -40 °C.
Interfaces:
Alarm contact: 1 relay output with a current capacity of 1 A at 24 V DC.
Fiber-optic ports: 100BaseFX ports (SC connector), Multimode.
Function DIP switch: 100BaseFX full-/half-duplex mode, Port surveillance.
LED indicator: PWR1, PWR2, FAULT, 10/100M (TP-Port), 100M (fiber-optic port)., FDX/COL (Fiber port).
Number of ports: 1x RJ45, 1 * SC Multi-mode.
RJ45 ports: 10/100BaseT(X).
Power supply:
Connection type: 1 removable 6-pin terminal block.
Overload current protection: 1.1 A.
Reverse polarity protection.
Supply voltage: 24 V DC, 2 redundant inputs.
Current consumption:
Voltage: 12 V.
Current: 0.32 A.
Voltage: 24 V.
Current: 0.16 A.
Voltage supply range:
Voltage type: DC.
Voltage, min.: 12 V.
Voltage, max.: 45 V.
Technical data:
Housing main material: metal.
Protection degree: IP30.
Speed: Fast Ethernet.
Type of mounting: DIN rail.
