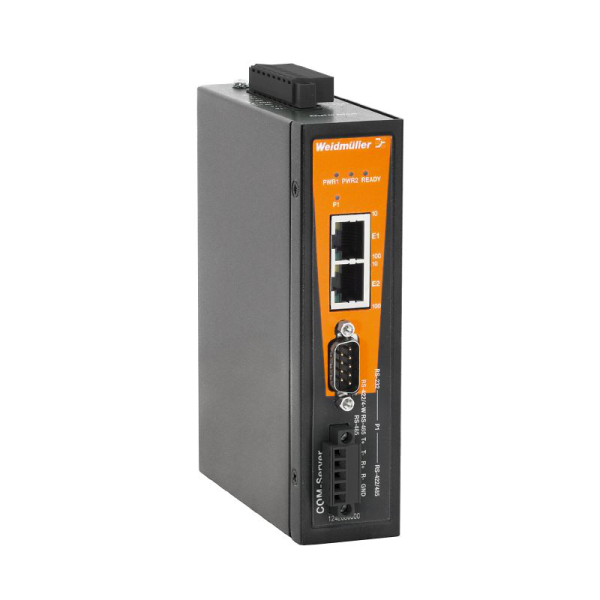

IE-CS-2TX-1RS232/485
SKU: 1242080000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Serial/Ethernet converter with 1 or 2 ports for industrial automation:
Enhanced supply, LAN, and serial port surge protection.
Robust screw-on terminal blocks for the serial connectors and power supply.
Simple cabling with cascading Ethernet ports.
Inputs from redundant DC power supplies.
Alerts by email and relay output.
Low power usage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Serial / Ethernet converter.
Quantity: 1.
Depth: 105 mm.
Height: 140 mm.
Width: 36 mm.
Storage temperature: -40 °C...85 °C.
Operating temperature range: 0 °C...60 °C.
Environmental conditions:
Humidity: 5 to 95 % (non-condensing).
Operating temperature, max.: 60 °C.
Operating temperature, min.: 0 °C.
Storage temperature, max.: 85 °C.
Storage temperature, min.: -40 °C.
Interfaces:
Ethernet cable protection: 1 kV (Level 2) surge protection.
Ethernet ports: 2.
Interface standards: RS-232/422/485.
Magnetic isolation protection: 1.5 kV built in.
RJ45 ports: 10/100BaseT(X), Auto MDI/MDI-X port.
RS485 data direction control: ADDC (automatic data direction control).
Serial cable protection: 15 kV ESD protection for all signals, 1 kV (Level 2) surge protection.
Serial port: DB9 RS-232, Terminal block for RS-422/485.
Serial ports: 1.
Power supply:
Connection type: 1 removable 8-pole terminal block.
Supply voltage: 24 V DC, 2 redundant inputs.
Current consumption:
Voltage: 12 V.
Current: 0.22 A.
Voltage: 24 V.
Current: 0.11 A.
Voltage supply range:
Voltage type: DC.
Voltage, min.: 12 V.
Voltage, max.: 48 V.
Technical data:
Housing main material: metal.
Protection degree: IP30.
Type of mounting: Rail.
