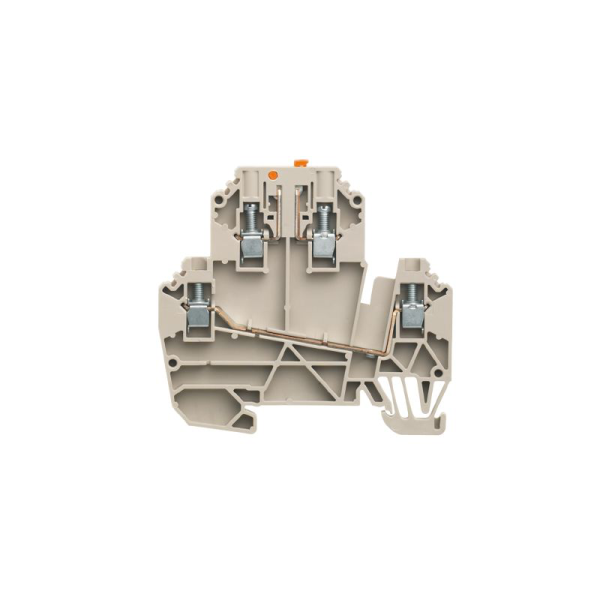

WDK 2.5/TR-DU
SKU: 1247290000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WDK 2.5/TR-DU:
For testing and safety reasons, it makes sense to add a test point or a disconnect element to the feed through terminal in particular applications.
In the absence of voltage, electric circuits can be measured using test disconnect transformers.
Although the creepage distance and clearing between disconnecting sites are not measured in terms of dimensions.
The rated impulse voltage strength needs to be verified.
Material data:
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 67.5 mm
Depth including DIN rail: 67 mm
Height: 72.5 mm
Width: 5.1 mm
Net weight: 14.86 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Rating data:
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated DC voltage: 500 V
Rated current: 24 A
Current at maximum wires: 24 A
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Rated impulse withstand voltage: 8 kV
Power loss in accordance with IEC 60947-7-x: 0.77 W
Pollution severity: 3
