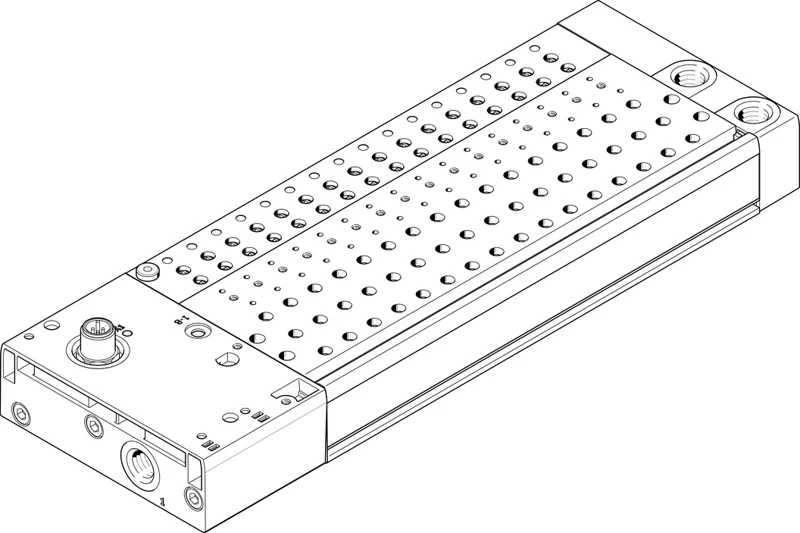

Manifold rail, VABM-C8-12E-G14-8-PT-L

Specifications • Valve terminals VTUB-12 • Accessories, Manifold rail with I-Port interface • Grid dimension 12 mm • Max. number of valve positions 8 • CE marking (see declaration of conformity) To UK instructions for EMC, To UK RoHS instructions • Corrosion resistance class CRC 0 - No corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Max. tightening torque for valve mounting 0.6 Nm • Max. tightening torque wall mounting 5 Nm • Product weight 727 g • Pneumatic connection, port 1 G1/4 • Pneumatic connection, port 3 G1/4 • Pneumatic connection, port 5 G1/4 • Note on materials RoHS-compliant • Material manifold rail Wrought aluminium alloy
