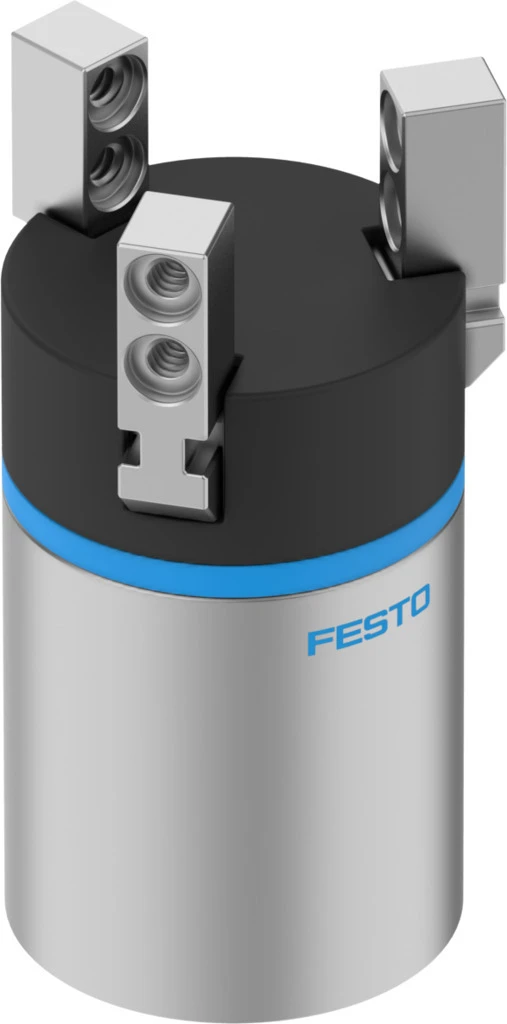

Three-point gripper, DHDS-16-A

Specifications • Three-point gripper DHDS • Size 16 • Stroke per gripper jaws 2.5 mm • Max. replacement accuracy ≤0.2 mm • Max. angular gripper jaw backlash ax, ay ≤0.5 deg • Max. gripper jaw backlash Sz ≤0.02 mm • Rotationally symmetrical ≤0.2 mm • Repetition accuracy, gripper ≤0.04 mm • Number of gripper jaws 3 • Mounting position optional • Mode of operation Double-acting • Gripper function 3-point • Design Lever, Force pilot operated motion sequence • Position detection Via Hall sensor • Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) 29 N
