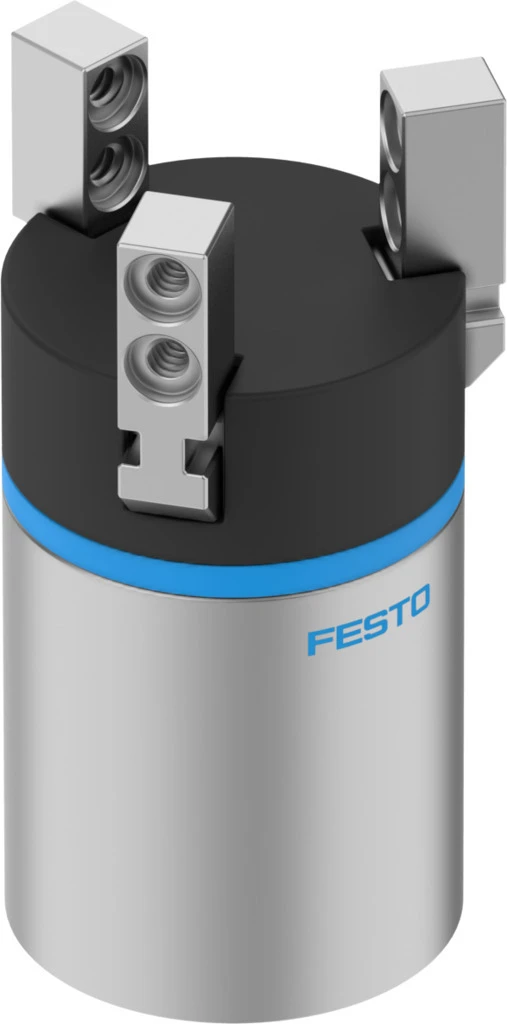

Three-point gripper, DHDS-16-A-NC
SKU: 1259492
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Three-point gripper DHDS
• Size 16
• Stroke per gripper jaws 2.5 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.5 deg
• Max. gripper jaw backlash Sz ≤0.02 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.04 mm
• Number of gripper jaws 3
• Mounting position optional
• Mode of operation Double-acting
• Gripper function 3-point
• Gripper force back-up During closing
• Design Lever, Force pilot operated motion sequence
• Position detection Via Hall sensor
Buy currently uses Select Automation shop pricing and checkout.
Three-point gripper DHDS
• Versatile in use: standard gripper DHDS with high gripping force.
• Sturdy and precise T-slot guidance of the gripper jaws
• High gripping force and compact size
• Max. repetition accuracy
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally closed (NC)
• Suitable for external and internal gripping
• Wide range of adaptation options on the drives
• Sustainable thanks to extended life cycle and easier repairs
