AKE 2.5
SKU: 1303360000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

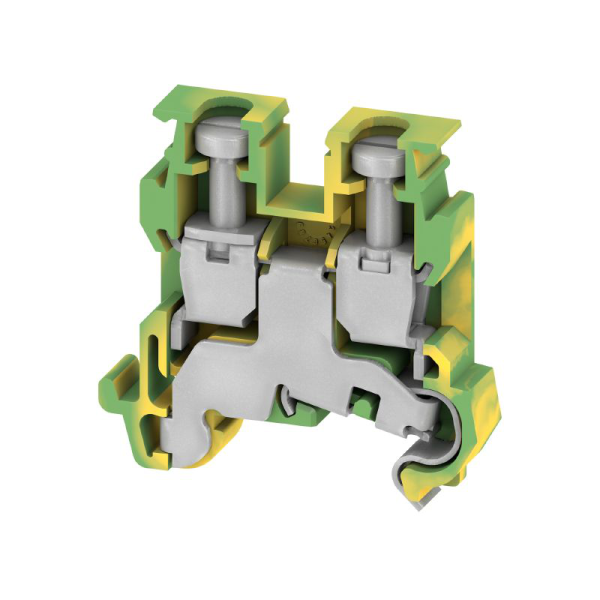

AKE 2.5:
There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
To determine the mechanical and electrical safety.
PE terminal blocks are used to connect copper wires to the mounting support plate.
They've got one or more places of contact where protective earth conductors can be divided or connected.
Material data:
Material: Wemid
Colour: yellow, green
UL 94 flammability rating: V-2
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 26 mm
Depth including DIN rail: 28 mm
Height: 28 mm
Width: 5.1 mm
Net weight: 4.374 g
Temperatures:
Storage temperature: -25 °C...55 °C
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.: -60 °C
Continuous operating temp., max.: 130 °C
Rating data:
Rated cross-section: 2.5 mm²
Rated voltage to adjoining terminal: 250 V
Standards: IEC 60947-7-2
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Rated impulse withstand voltage to adjacent terminal: 4 kV
Power loss in accordance with IEC 60947-7-x: 0.77 W
Pollution severity: 3
