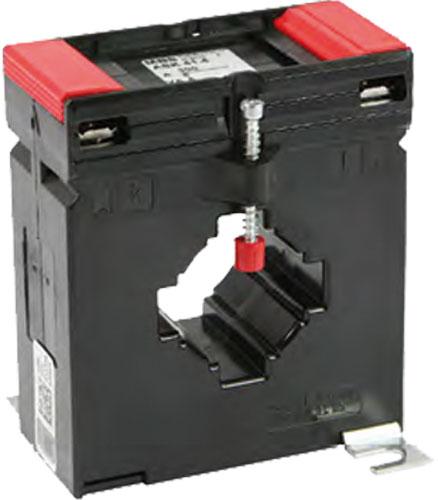

ASK 41.4 200/5A CURRENT TRANSFORMER CLASS 1
SKU: 13050
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
ASK 41.4 current transformers:
MODEL: ASK 41.4
RATIO: 200/5A
ROUND CONDUCTOR (⌀): 32 mm
PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
DESCRIPTION: Standard current transformer
CLASS: 1
VA: 5
DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 58
Current transformers
Buy currently uses Select Automation shop pricing and checkout.
General specifications:
Isolation class: E
Maximum operating voltage: Um ≤ 0.72 kV
Nominal frequency: 50Hz (others on request)
Nominal thermal short-time current: Ith = 60 x In
Over-current limiting factor: FS 5 up to 1500 A nominal current
MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Busbar mounted current transformers (5A secondary - class 1)
