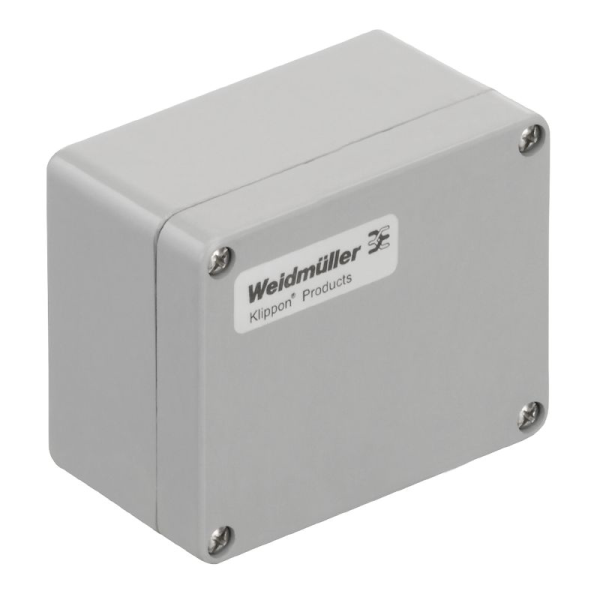

KLIPPON POK 081106
SKU: 1305820000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Klippon® POK Series Enclosures:
The polyester enclosures in the Klippon® POK family are made to withstand extreme conditions and potentially explosive atmospheres while integrating seamlessly with general-purpose electrical and electronic equipment and control components.
The Klippon POK enclosure series is designed to fulfil the tough demands of the industrial automation, process control, and energy industries, as well as signal and component protection.
Features:
For usage in industrial settings and potentially explosive environments.
Incredibly strong and resistant to impact.
Endorsed in accordance with the most recent global standards.
Mounting plates, mounting rails, printed circuit boards, and other components can be installed using M4 or M6 mounting elements that are built into the enclosure body.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Klippon POK (polyester empty enclosure), Empty enclosure.
Quantity: 1.
Depth: 56 mm.
Height: 75 mm.
Height of lowest version: 56 mm.
Width: 110 mm.
Mounting dimension – height: 45 mm.
Mounting dimension – width: 98 mm.
Operating temperature: -40 °C...100 °C.
Access opening: height: 66.02 mm.
Access opening: width: 101.02 mm.
Areas of use: Harbour facilities, Machine construction, Process industry, Transportation.
Enclosure attachment: Installation through the housing rear wall, Fixing lugs.
No Flange plate.
Impact resistance: 5 J version standard.
Lid attachment: Slotted/Phillips screws.
Material: Glass fibre-reinforced polyester.
Material thickness of cover: 3.7 mm.
Material thickness of enclosure: 4.29 mm.
Number of lid screws: 4.
Operating temperature, max.: 100 °C.
Operating temperature, min.: -40 °C.
Protection degree: IP66.
Seal material: Chloroprene.
Standards: DIN EN 62208 - Empty enclosure standard, IEC 60079-0, IEC 60079-7, IEC 60079-31.
Surface finish: untreated, polished.
Torque for lid screws: 2.5 Nm.
UL 94 flammability rating: V-0.
