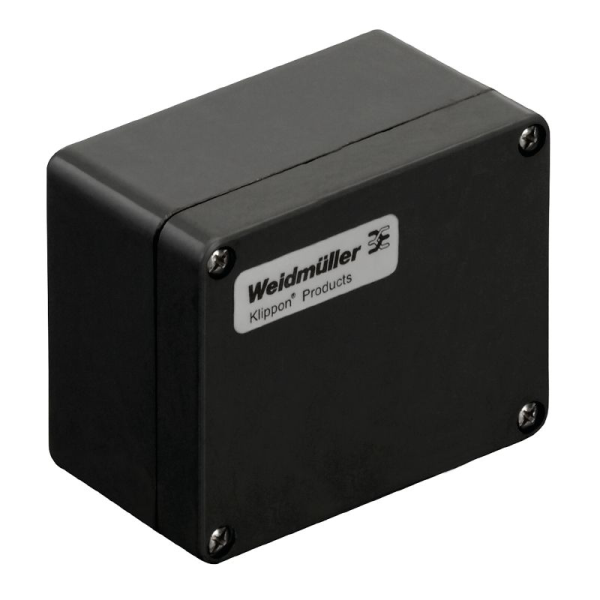

KLIPPON POK 081106 EX
SKU: 1306010000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The polyester enclosures in the Klippon® POK family are made to withstand extreme conditions and potentially explosive atmospheres while integrating seamlessly with general-purpose electrical and electronic equipment and control components.
The Klippon POK enclosure series is designed to fulfil the tough demands of the industrial automation, process control, and energy industries, as well as signal and component protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Klippon POK (polyester empty enclosure), Empty enclosure.
Quantity: 1.
Dimensions:
Depth: 56 mm.
Height: 75 mm.
Width: 110 mm.
Mounting dimension – height: 45 mm.
Mounting dimension – width: 98 mm.
Access opening: height: 66.02 mm.
Access opening: width: 101.02 mm.
Operating temperature: -55 °C...100 °C.
Areas of use: Explosive risk zone, Harbour facilities, Machine construction, Process industry, Transportation.
Enclosure attachment: Installation through the housing rear wall, Fixing lugs.
No Flange plate.
Impact resistance: 7 J ATEX version.
Lid attachment: Slotted/Phillips screws.
Materials:
Material: Glass fibre-reinforced polyester.
Material thickness of cover: 3.7 mm.
Material thickness of enclosure: 4.49 mm.
Surface finish: untreated, polished.
Number of lid screws: 4.
Protection degree: IP66.
Seal material: Silicone.
Standards:
DIN EN 62208 - Empty enclosure standard
IEC 60079-0.
IEC 60079-7.
IEC 60079-31.
Torque for lid screws: 2.5 Nm.
UL 94 flammability rating: V-0.
