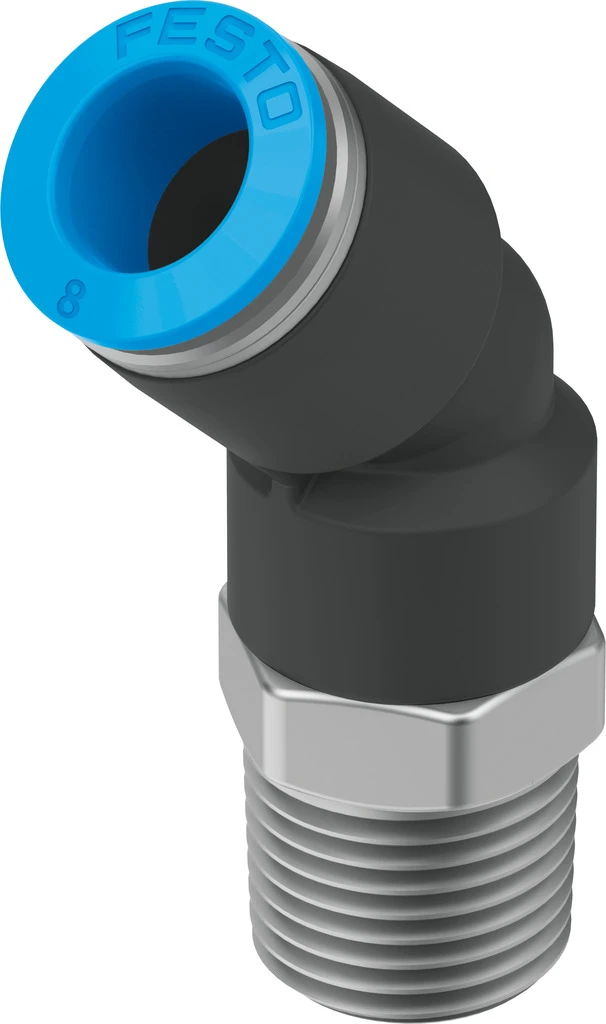

Push-in fitting, QSW-1/2-12

Specifications • Push-in fittings QS, standard, Push-in fitting QSW Male thread with external hex, rotatable • Pneumatic connection, port 1 Male thread R1/2 • Pneumatic connection, port 2 For tubing outer diameter of 12 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C • Size Standard • Nominal size 10.3 mm • Type of seal on screwed plug Coating • Mounting position optional • Design 45° angle • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi
