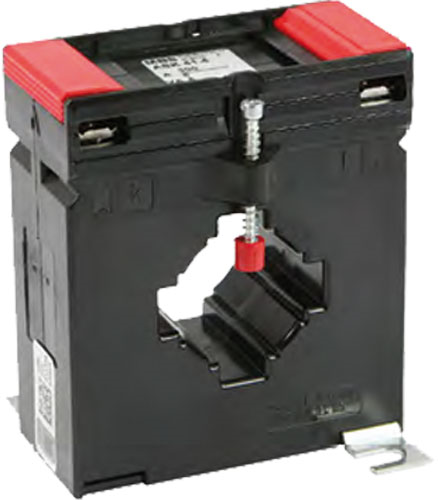

ASK 41.4 500/5A CURRENT TRANSFORMER CLASS 1
SKU: 13066
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Current transformers ASK 41.4:
Model number: ASK 41.4
Ratio: 500/5A
PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
ROUND CONDUCTOR (⌀): 32 mm
DESCRIPTION: typical current transformer
DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 58
CLASS: 1
VA: 15.
Transformers for current
Buy currently uses Select Automation shop pricing and checkout.
General details:
Nominal frequency: 50Hz (others upon request)
Maximum operating voltage: Um ≤ 0.72 kV
Isolation class: E
Ith = 60 x In is the nominal thermal short-time current.
Over-current limiting factor: FS 5 for nominal currents up to 1500 A
MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
Current transformers installed on busbars (5A secondary, class 1)
