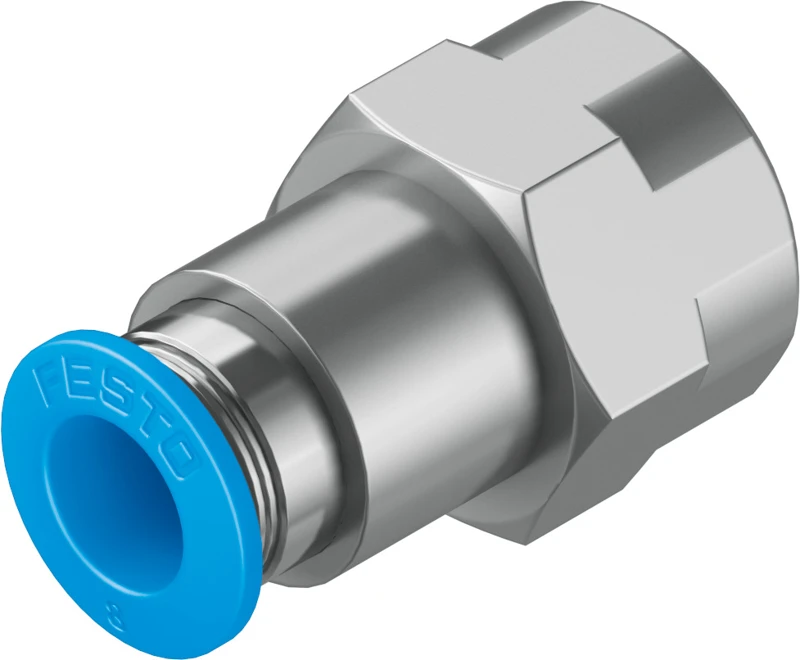

Push-in fitting, QSF-1/8-4-B-100

Specifications • Push-in fittings QS, standard, Female thread with external hex • Pneumatic connection, port 1 Female thread G1/8 • Pneumatic connection, port 2 For tubing outside diameter of 4 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C • Size Standard • Nominal size 3 mm • Type of seal on screwed plug Coating • Mounting position optional • Design Straight design • Size of pack 100 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi
