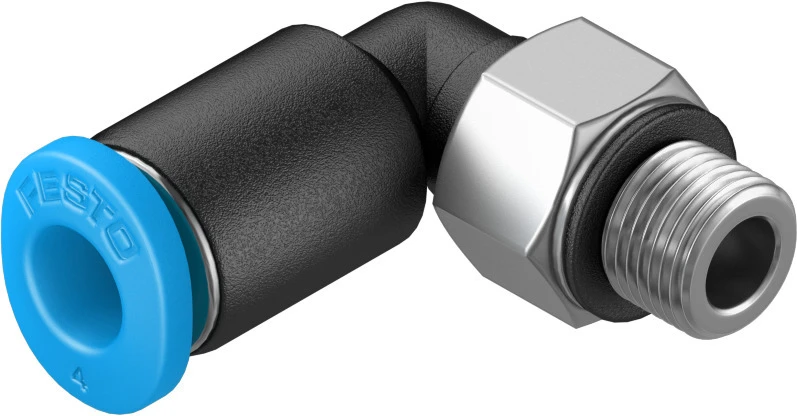

Push-in L-fitting, QSML-M5-4-100

Specifications • Solenoid valves MH2, MH3, MH4, fast-switching valve • Accessories, Push-in L-fitting for MHP2 and MHA2 • Male thread M5 with external hex, push-in L-fitting rotatable through 360º, for tubing O.D. • Size Mini • Nominal size 1.7 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design L-shape • Size of pack 100 • Design Push-pull principle • Pneumatic connection, port 1 Male thread M5 • Pneumatic connection, port 2 For tubing outside diameter of 4 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C
