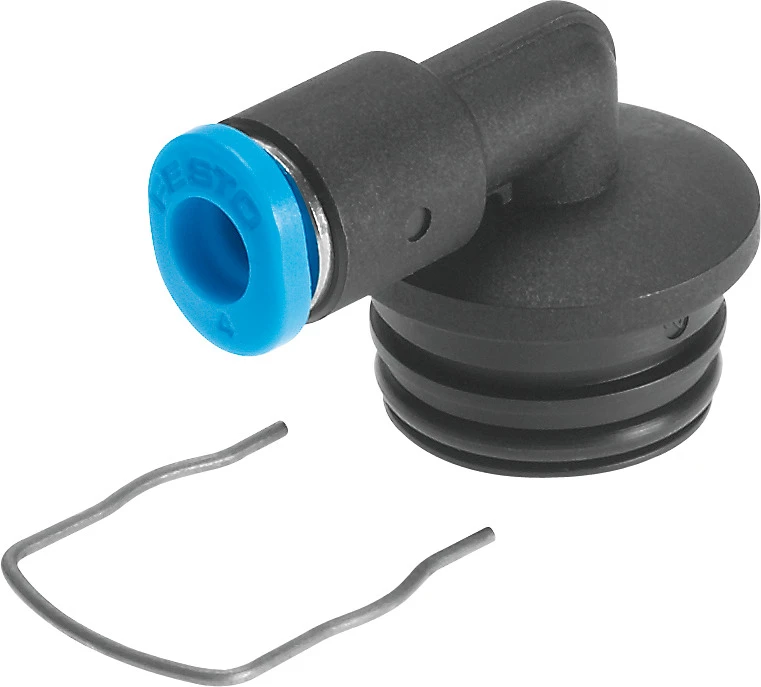

Cartridge, QSPLK18-4

Specifications • Push-in fitting, push-in cartridge, black polymer QSPK • Pneumatic connection, port 1 Cartridge 18 mm • Pneumatic connection, port 2 For tubing outside diameter of 4 mm • Ambient temperature -5 °C - 60 °C • Nominal size 2.3 mm • Size Mini • Type of seal on screwed plug O-ring • Mounting position optional • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi
