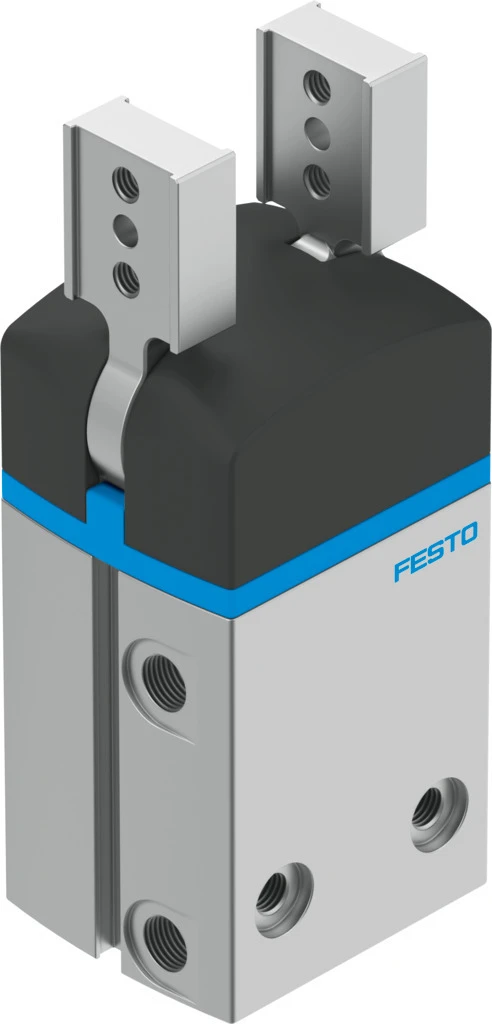

Radial gripper, DHRS-40-A
SKU: 1310166
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Radial gripper DHRS, Double-acting, without compression spring
• Size 40
• Max. replacement accuracy ≤0.2 mm
• Max. opening angle 180 deg
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.1 mm
• Number of gripper jaws 2
• Mounting position optional
• Mode of operation Double-acting
• Gripper function Radial
• Design Force pilot operated motion sequence
• Position detection Via proximity switch
• Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening 725 Ncm
• Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi) 660 Ncm
Buy currently uses Select Automation shop pricing and checkout.
Radial gripper DHRS
• The cost-effective standard gripper with higher gripping forces of up to 725 Nm effortlessly masters most gripping applications.
• It comes in different sizes, offers position sensing, optional gripping force backup and high torque loads.
• Lateral gripper jaw support for high torque loads
• Self-centring
• Internal fixed flow control
• Max. repetition accuracy
• Slotted guide
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally closed (NC)
• Wide range of adaptation options on the drives
