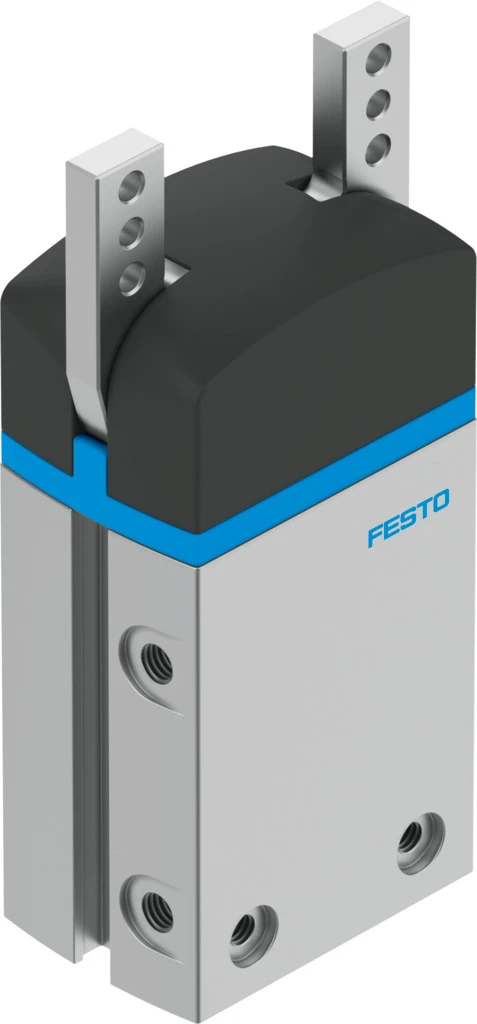

Angled gripper, DHWS-25-A-NC
SKU: 1310181
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle gripper DHWS
• Size 25
• Max. interchangeability ≤0.2 mm
• Max. opening angle 40 deg
• Rotational symmetry ≤0.2 mm
• Pneumatic gripper repetition accuracy ≤0.04 mm
• Number of gripper jaws 2
• Mounting position Any
• Mode of operation Double-acting
• Gripper function Angle
• Gripping force backup During closing
• Structural design Lever
• Position sensing For proximity sensor
Buy currently uses Select Automation shop pricing and checkout.
Angled gripper DHWS
• Equipped for a wide range of applications: The standard gripper DHWS ensures a high gripping force. Slotted guide for exterior and interior gripping.
• Improved gripper jaw guide
• Internal fixed throttling, does away with the need for external throttling in 80% of applications
• Slotted guide
• Max. repetition accuracy
• Can be used as a double-acting and single-acting gripper
• Single-acting variant or with gripping force backup normally closed (NC)
• Suitable for external and internal gripping
• Wide range of options for mounting on actuator units
