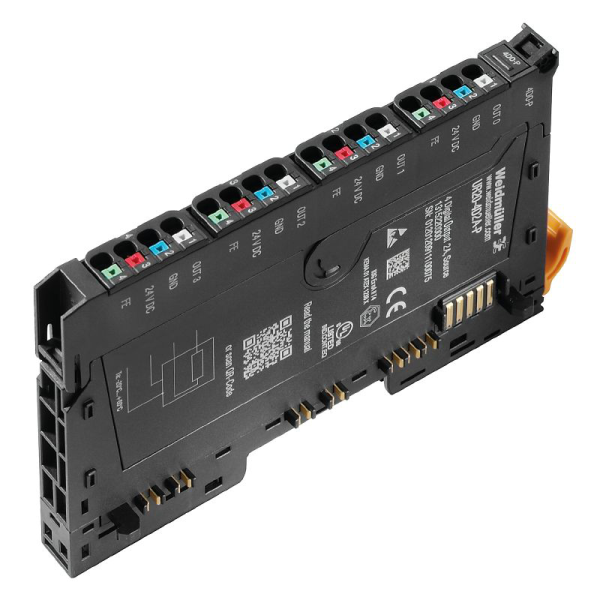

UR20-4DO-P-2A
SKU: 1315230000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-4DO-P-2A:
Weidmüller's digital input modules come in a variety of forms and are generally used to accept binary control signals from sensors, transmitters, switches, and proximity switches.
They will meet your need for well-coordinated project planning with reserve potential because of its adaptable design.
All modules are available in 4, 8, or 16 input configurations and completely conform with IEC 61131-2.
The digital input modules are available in P- or N-switching configurations.
The digital inputs are for Type 1 and Type 3 sensors as per the specification.
They are utilized in a variety of applications and have a maximum input frequency of 1kHz.
The variant for PLC interface units allows for quick connecting to the well-known Weidmüller interface sub-assemblies using system cables.
This guarantees quick integration with your entire system.
Two modules having a timestamp function can record binary signals and deliver a timestamp in 1μs resolution.
The module UR20-4DI-2W-230V-AC, which operates with accusant current up to 230V as an input signal, opens up additional possibilities for solutions.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 11.5 mm.
Width (inches): 0.453 inch.
Mounting dimension - height: 128 mm.
Net weight: 85 g.
Temperatures:
Storage temperature: -40 °C - +85 °C.
Operating temperature: -20 °C - +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
digital outputs:
Actuator connection: 2-wire, 3-wire, 3-wire + FE.
Actuator supply:
min.: 0 %.
nominal: 750 %.
max.: 750 %.
Feedback-free: Yes.
Individual channel diagnosis: No.
Inductive load (DC13): 0.2 Hz.
Lamp load (12 W): 1 kHz.
Max. response time, high: 100 µs.
Max. response time, low: 250 µs.
Module diagnosis: Yes.
Number of digital outputs: 4.
Output current as per application:
min.: 0 %.
nominal: 750 %.
max.: 750 %.
Output current per channel, max.: 2,000 mA.
Output current per module, max.: 8,000 mA.
Resistive load (min. 47 Ω): 1 kHz.
Response time of the protective circuit (current limiting): <100μs.
Short-circuit-proof: Yes (thermal cut-out).
Simultaneity factor:
min.: 0 %.
nominal: 750 %.
max.: 750 %.
Switch-off energy (inductive): <150 mJ / channel.
Type: Lamp load, Ohmic, Inductive.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, max. (AWG): AWG 16.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from IOUT (the respective power segment): 10 mA + load.
Current consumption from Isys, typ.: 8 mA.
Voltage supply: 24 V DC +20 %/ -15 %, via the system bus.
System data:
Diagnostic data: 1 Bit.
Galvanic isolation: 500 V DC between the current paths.
Interface: u-remote system bus.
Module type: Digital output module.
Possible connection: 2-wire, 3-wire, 3 conductor FES.
Process data: 4 Bit.
Transmission speed of system bus, max.: 48 Mbit.
