UR20-2PWM-PN-0.5A
SKU: 1315600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

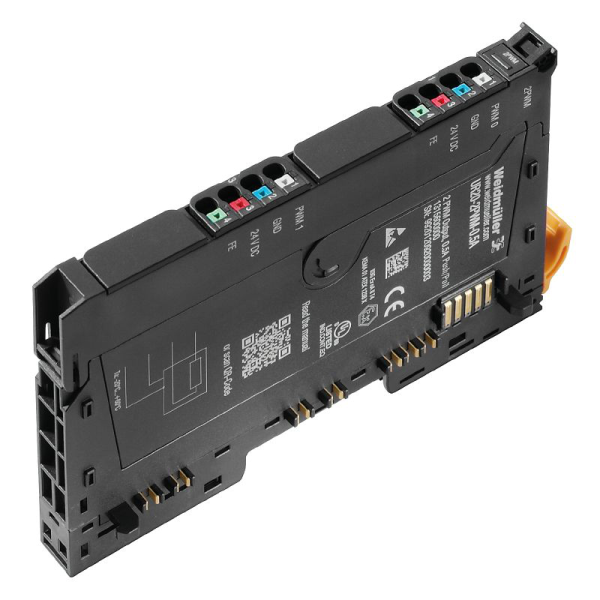

The UR20-2PWM-PN-0.5A is a compact, high-performance remote I/O module from the u-remote system.
It has two short-circuit-proof PWM digital outputs with push/pull functionality, making it ideal for controlling small motors and valve actuators precisely.
Ideal for robotics, handling systems, and automation activities that require flexible motor control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module type: Functional module.
Signal type: Digital (PWM).
Channels: 2 digital outputs.
Output type: Push/pull, short-circuit-proof.
Fieldbus support: PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN.
Mounting: TS 35 DIN rail.
Protection class: IP20.
Diagnosis: Module-level only (no individual channel diagnosis).
Dimensions & Weight:
Width: 11.5 mm.
Height: 120 mm (128 mm mounting height).
Depth: 76 mm.
Net weight: 85 g.
Environmental Conditions:
Operating temperature: -20°C to +60°C.
Storage temperature: -40°C to +85°C.
Humidity: 10–95% (non-condensing).
Shock resistance: 15 g over 11 ms (IEC 60068-2-27).
Vibration resistance: 3.5 mm @ 5–8.4 Hz, 1 g @ 8.4–150 Hz.
Electrical Characteristics:
Output current per channel: max. 0.5 A.
Output current per module: max. 1 A.
Switching frequency: 6 Hz to 40 kHz (resistive, inductive, lamp loads).
Pulse duty factor: 0–100% (parameterizable).
Resolution: 32-bit.
Response time (high/low): ≤ 100 ns.
Voltage supply: 24 V DC ±20% / -15% via system bus.
Current consumption:
From system bus: 8 mA.
From output segment (IOUT): 40 mA.
Connection Details:
Connection type: PUSH IN.
Wire cross-section (solid/stranded): 0.14–1.5 mm².
AWG range: 26–16.
Actuator connection: 2-wire, 3-wire, 3-wire + FE.
Galvanic isolation: 500 V DC between current paths.
Compliance & Approvals:
UL File Numbers: E141197 (cULus), E223527 (cULusEX).
CE, ATEX, IECEx, DNV, UKCA, ClassNK, KOREANCERT.
RoHS: Compliant with exemptions (7a, 7cI).
REACH SVHC: Lead, Diboron trioxide, Lead monoxide.
Flammability rating: UL 94 V-0.
Pollution severity: 2.
Surge category: II.
