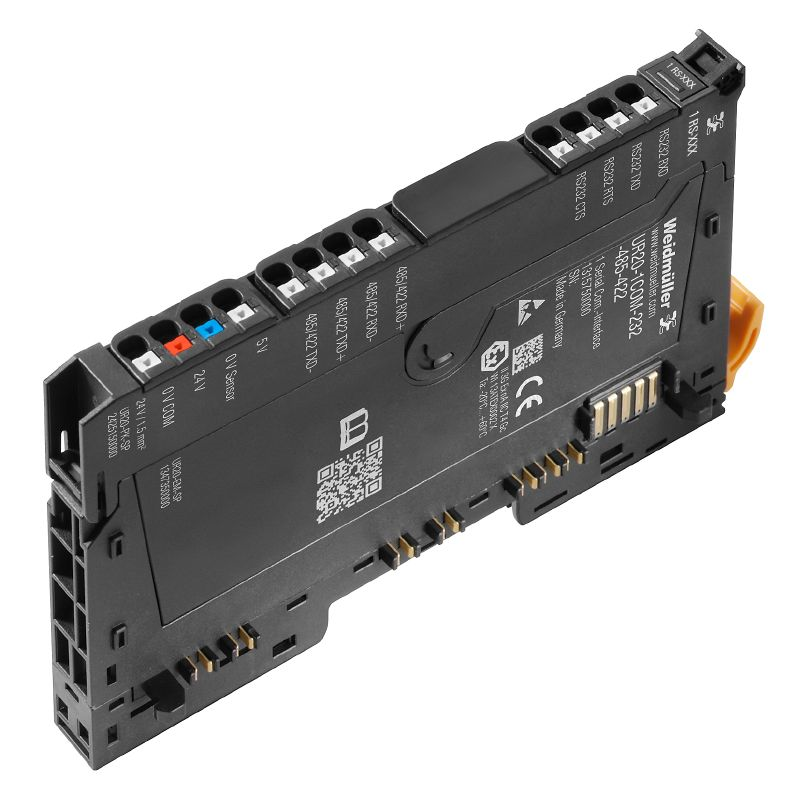

UR20-1COM-232-485-422
SKU: 1315750000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Digital counters and communication modules 100/500 kHz.
Counter resolution in 32 bits.
Individual channel diagnostics.
The synchronous serial interface (SSI) module enables absolute value encoders to perform high-precision positioning operations.
To accommodate all domains of application, the module can be programmed to operate in either listening or master modes.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weight:
Depth: 76 mm.
Height: 120 mm.
Width: 11.5 mm.
Mounting dimension – height: 128 mm.
Net weight: 87.03 g.
Temperature:
Storage temperature: -40 °C ... +85 °C.
Operating temperature : -20 °C ... +60 °C.
Output current, supply voltage max.: 500 mA.
Power Supply:
Current consumption from IIN (the respective power segment): 16 mA + load.
Current consumption from Isys, typ.: 8 mA.
Voltage supply: 24 V DC +20 %/ -15 % via the system bus.
RS Interface:
Output current, supply voltage max.: 500 mA.
Standards RS232: DIN 66020, DIN 66259, EIA-RS 232C, CCITT V.24/V.28.
Standards RS485/422: DIN 66259 Part 1 und 3, EIA-RS 422/485, CCITT V.11.
System Data:
Field bus protocol:
PROFINET IRT.
PROFINET RT.
CC-Link IE TSN.
IEC 61162-450.
PROFIBUS DP-V1.
EtherCAT.
Modbus/TCP.
EtherNet/IP.
CANopen.
DeviceNet.
POWERLINK.
CC-Link.
Galvanic isolation: 500 V DC between the current paths.
Interface: u-remote system bus.
Module type: Functional module.
Output current: 0.5 A.
Transmission speed of system bus, max.: 48 Mbit.
