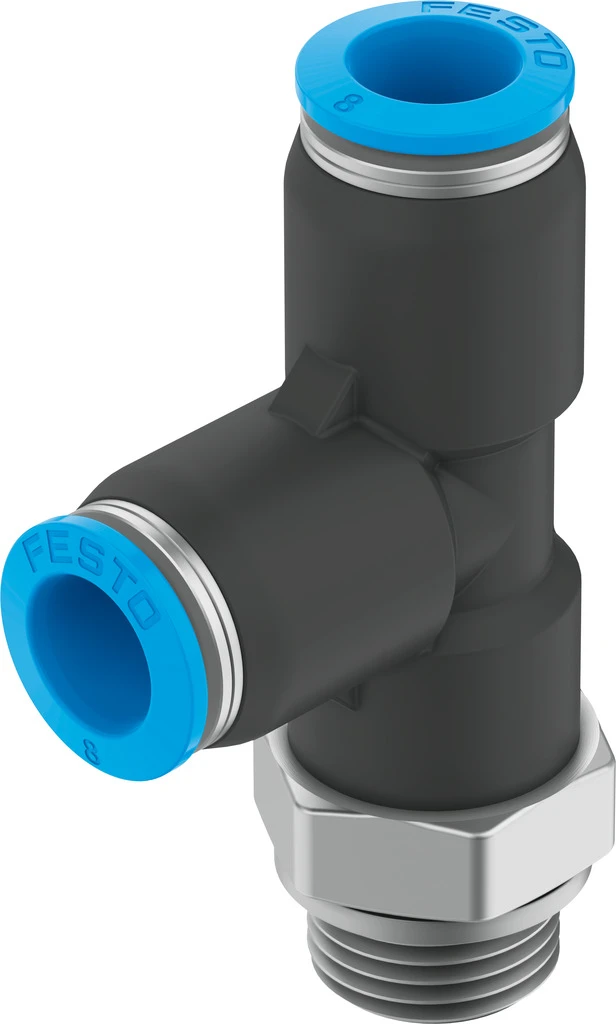

Push-in T-fitting, QSTL-G1/4-8-50

Specifications • Push-in fittings QS, standard, Push-in T-fitting QSTL Male thread with external hex, rotatable • Pneumatic connection, port 1 Male thread G1/4 • Pneumatic connection, port 2 For tubing outside diameter of 8 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C • Size Standard • Nominal size 6.7 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design T-shape, additional push-in connector, lengthwise • Size of pack 50 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi
