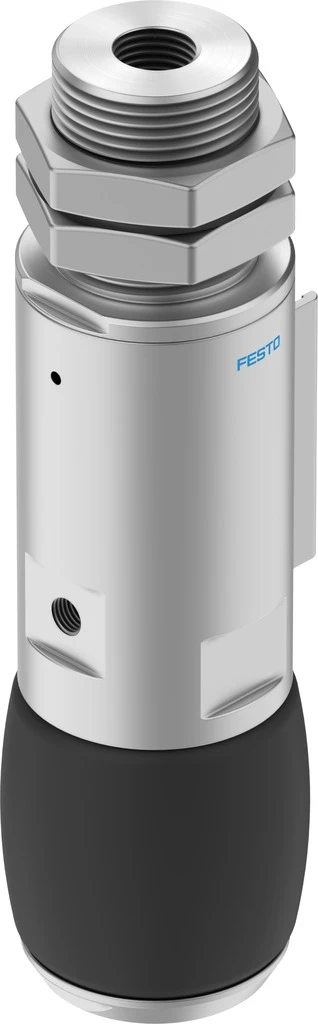

Bellow gripper, DHEB-33-E-U-E-P
SKU: 1320838
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Bellows gripper DHEB
• Min. opening time at 0.6 MPa (6 bar, 87 psi) 30 ms
• Min. closing time at 0.6 MPa (6 bar, 87 psi) 60 ms
• Guide value for effective load 0.7 kg
• Size 33
• Stroke of bellows 14.5 mm
• Min. ø to be gripped 34 mm
• Max. ø to be gripped 45 mm
• Mounting position optional
• Mode of operation Single-acting, Closed
• Gripper function Adaptive
Buy currently uses Select Automation shop pricing and checkout.
Bellows gripper DHEB
• For gentle internal gripping of fragile workpieces, the bellows gripper DHEB clamps by adapting to their inner contour.
• 11 sizes for gripping diameter from 8 to 85 mm
• Direction of movement: bellows upwards or downwards
• Different bellows materials: EPDM or silicone
• Air connection on the side or from above
• Optimised process sequence with increased quality: prevents the workpieces from being scratched
• Additional reliability: optional sensing via proximity or position sensor
• For gentle internal gripping of delicate workpieces
