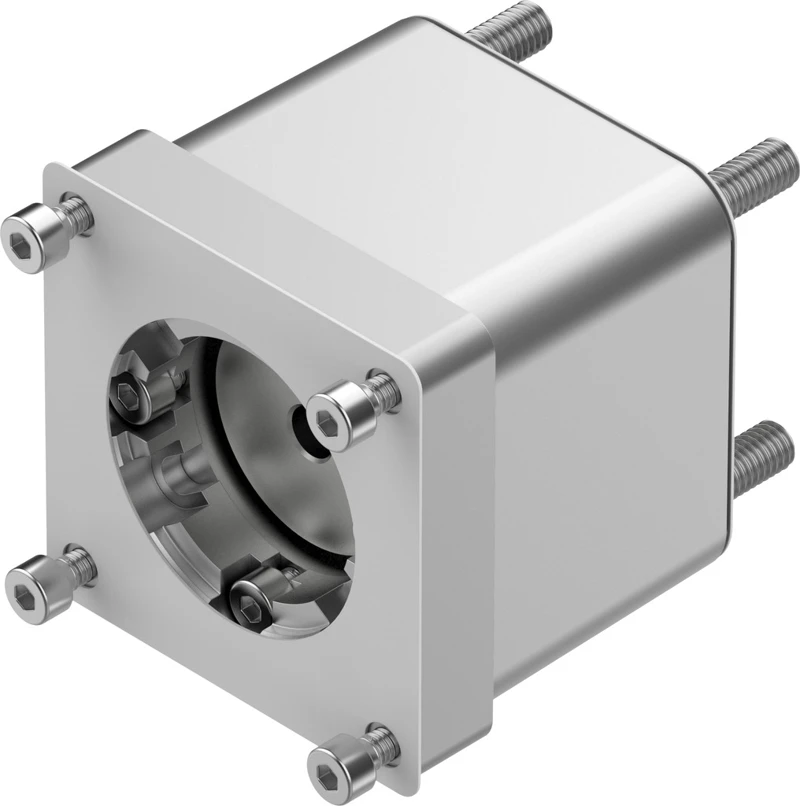

Axial kit, EAMM-A-D40-57A-S1
SKU: 1322183
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Axial kits EAMM-A
• Nominal length 52 mm
• Mounting position optional
• Max. rotational speed 8000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 5.87 kgmm²
• Transmittable torque 6.5 Nm
• Product weight 350 g
• Interface code, actuator D40
• Interface code, motor in 57A
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Axial kits EAMM-A
• Nominal length 52 mm
• Mounting position optional
• Max. rotational speed 8000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 5.87 kgmm²
• Transmittable torque 6.5 Nm
• Product weight 350 g
• Interface code, actuator D40
• Interface code, motor in 57A
• Note on materials RoHS-compliant
