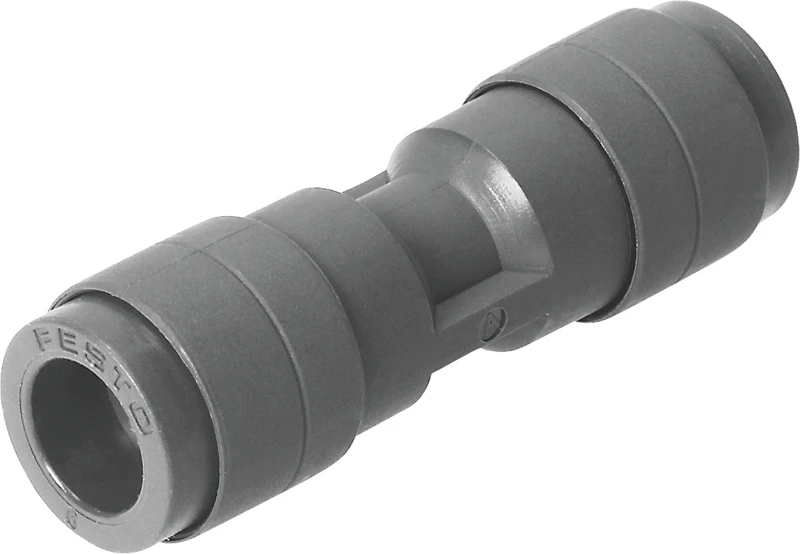

Push-in connector, QS-V0-4

Specifications • Push-in fittings QS-V0, resistant to welding spatter • Push-in connector QS-V0 • Size Standard • Nominal size 2.8 mm • Fire test material UL94 V-0 (housing), UL94 V-0 (releasing ring) • Design Straight design • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Note on operating pressure Water: max. 0.6 MPa at max. 50°C • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) • Pneumatic connection, port 1 For tubing outer diameter of 4 mm • Pneumatic connection, port 2 For tubing outside diameter of 4 mm
