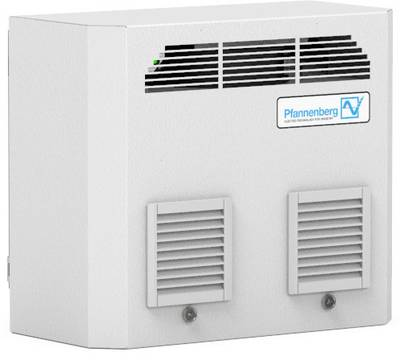

DTI 9021 230V AC SC
SKU: 13293041055
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DTI 9021 AC SC 230V:
robust: steel cover that is easily painted.
The compact design is appropriate for flat control cabinets, control consoles, and operational units.
diagnostic alert displayed on the operational display.
combined door contact and problem.
offered with an integrated condensate evaporation system as an optional feature.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated voltage ±10 %:
AC 50/60 Hz: 230 V.
Cooling performance according to EN 14511:
AC 50/60 Hz (A35/A35): 320 / 340 W.
AC 50/60 Hz (A35/A45): 300 / 330 W.
Power consumption (A35/A35): 230 / 240 W.
Current consumption (A35/A35): 1.6 A.
Starting current (A35/A35): 11.7 / 10.9 A.
Unimpeded airflow (free flow):
internal 282 m3 /h.
external 282 m3 /h.
Pre fuse T: 4 A.
Type of connection: spring-type terminal included with plug.
Noise level according to EN ISO 3741: < 62 dB (A).
Weight (without packaging): 17 kg.
Ambient temperature: +15 … +45 °C / +59 … +113 °F.
Control range (adjustable) + 25 … + 45 °C | + 77 … + 113 °F; factory setting + 35 °C | + 95 °F.
Refrigerant R134a: 350 g.
Duty cycle: 100 %.
Condensate management: condensate drain; integrated condensate evaporation system optional.
Protection system according to EN 60529 (IP 54): towards the electrical enclosure if used as intended by the manufacturer.
Protection system according to EN 60529 (IP 34): towards the surroundings if used as intended by the manufacturer.
Design housing: galvanised sheet steel.
Design cover: galvanised | electrostatically powder coated (200 °C) | stainless steel on request.
Colour: RAL 7035 | different colours available on request.
