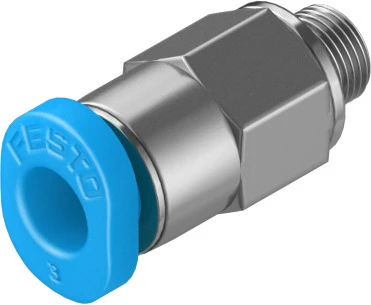

Push-in fitting, QSM-M3-2

Specifications • Push-in fittings QSM, mini, Male thread with external hex • Size Mini • Nominal size 0.9 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design Straight design • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Pneumatic connection, port 1 Male thread M3 • Pneumatic connection, port 2 For tubing outside diameter of 2 mm • Ambient temperature -10 °C - 80 °C
