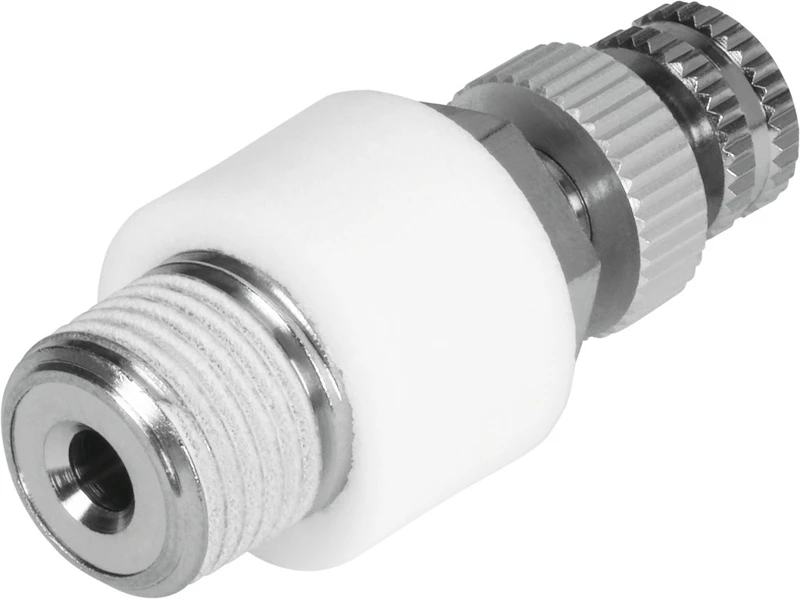

Flow control/silencer, VFFK-C-K-R14

Specifications • Flow control/silencers VFFK • Valve function Sound pressure control function • Selection of additional functions With silencer • Pneumatic connection, port 1 R1/4 • Adjustment component Knurled screw • Type of mounting Screw-in • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 0 l/min ... 420 l/min • Operating pressure 0 bar ... 10 bar • Ambient temperature 0 °C ... 60 °C • Type of seal on screwed plug Coating • Mounting position optional • Symbol 00991451 • Operating pressure complete temperature range 0 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
