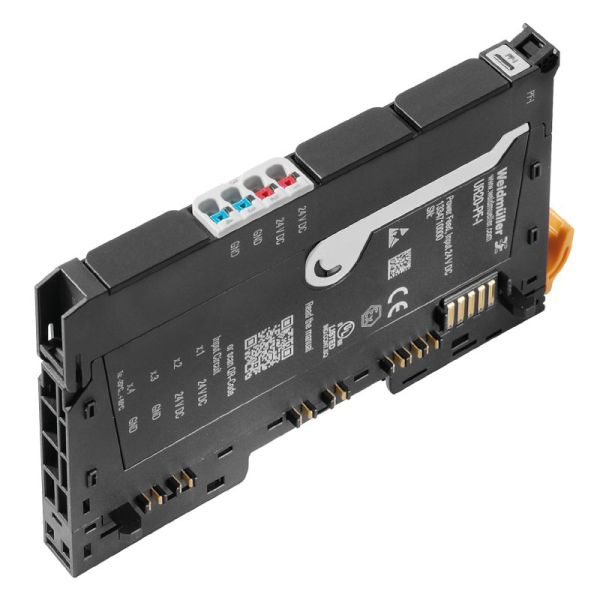

UR20-PF-I
SKU: 1334710000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-PF-I:
10 A feeding, input or output current path, and diagnosis display.
Weidmüller power feed modules are available to replenish the power in the input and output current paths.
The voltage diagnosis display keeps an eye on these, which feed 10 A into the appropriate input or output path.
The standard u-remote plug with tried-and-true "PUSH IN" technology for dependable connections ensures a quick start-up.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 11.5 mm.
Width (inches): 0.453 inch.
Mounting dimension - height: 128 mm.
Net weight: 76 g.
Temperatures:
Storage temperature: -40 °C... +85 °C.
Operating temperature: -20 °C... +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, max. (AWG): AWG 16.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from IIN (the respective power segment): < 10 mA.
Feed current for IIN (input current path):
min.: 10,000 mA.
nominal: 10,000 mA.
max.: 10,000 mA.
Feed current for IIN (input current path), max.: 10,000 mA.
Supply voltage system and inputs: 24 V DC +20 %/ -15 %.
System data:
Field bus protocol:
CANopen.
DeviceNet.
EtherCAT.
EtherNet/IP.
Modbus/TCP.
PROFINET IRT.
PROFIBUS DP-V1.
POWERLINK.
Interface: u-remote system bus.
Module type: Power-feed module.
