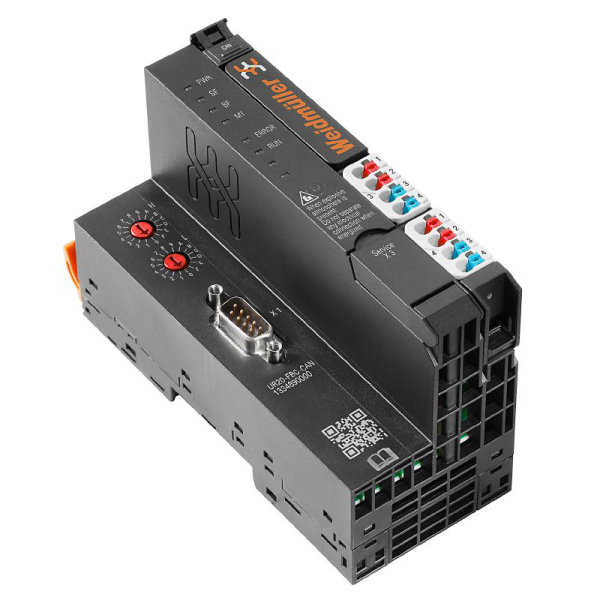

UR20-FBC-CAN
SKU: 1334890000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-FBC-CAN:
Weidmuller u-remote is a novel remote I/O concept with IP 20 that focuses solely on user benefits: tailored planning, faster installation, safer start-up, and no downtime, resulting in significantly better performance and productivity.
Reduce the size of your cabinets with u-remote, which has the smallest modular design on the market and requires fewer power-feed modules.
Our u-remote technology enables tool-free construction, while the modular "sandwich" design and integrated web server expedite installation in both the cabinet and machine.
Status LEDs on the channel and each u-remote module enable accurate diagnosis and quick service.
Our products increase the availability of your machines and systems while ensuring seamless processes from planning to operation.
The acronym for "More Performance" is u-remote. simplified.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 52 mm.
Width (inches): 2.047 inch.
Mounting dimension - height: 128 mm.
Net weight: 220 g.
Temperatures:
Storage temperature: -40 °C... +85 °C.
Operating temperature: -20 °C... +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1.
SCIP: 6e2691a1-14ad-497d-95a2-4457373ed84f.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, max. (AWG): AWG 16.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from Isys, typ.: 90 mA.
Feed current for IIN (input current path):
min.: 10,000 mA.
nominal: 10,000 mA.
max.: 10,000 mA.
Feed current for IIN (input current path), max.: 10 A.
Feed current for IOUT (output current path):
min.: 10,000 mA.
nominal: 10,000 mA.
max.: 10,000 mA.
Feed current for IOUT (output current path), max.: 10 A.
Feed current for the system, max.: 4 A.
Supply voltage for outputs: 24 V DC +20 %/ -15 %.
Supply voltage system and inputs: 24 V DC +20 %/ -15 %.
Voltage supply: 24 V DC +20 %/ -15 %, via the system bus.
System data:
Configuration interface: Micro USB 2.0.
Connection type: SUB-D9 (male plug).
Diagnostic data: 244 Byte.
Field bus protocol: CANopen.
Interface: u-remote system bus.
max. number of modules: 64.
Module type: Bus coupler.
Parameter data: 244 Byte.
Process data: 488 Byte.
Transmission rate of field bus, max.: 1 Mbit/s.
Transmission speed of system bus, max.: 48 Mbit/s.
Important note:
Product information: The matching end brackets are included with the coupler.
