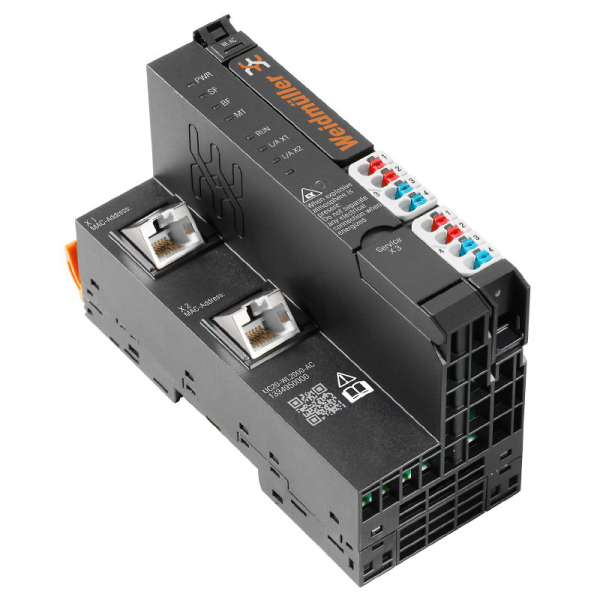

UC20-WL2000-AC
SKU: 1334950000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UC20-WL2000-AC:
Weidmuller u-remote is a novel remote I/O concept with IP 20 that focuses solely on user benefits: tailored planning, faster installation, safer start-up, and no downtime, resulting in significantly better performance and productivity.
Reduce the size of your cabinets with u-remote, which has the smallest modular design on the market and requires fewer power-feed modules.
Our u-remote technology enables tool-free construction, while the modular "sandwich" design and integrated web server expedite installation in both the cabinet and machine.
Status LEDs on the channel and each u-remote module enable accurate diagnosis and quick service.
Our products increase the availability of your machines and systems while ensuring seamless processes from planning to operation.
The acronym for "More Performance" is u-remote. simplified.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 52 mm.
Width (inches): 2.047 inch.
Mounting dimension - height: 128 mm.
Net weight: 232 g.
Temperatures:
Storage temperature: -40 °C... +85 °C.
Operating temperature: -20 °C... +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1.
SCIP: b2baa72f-7638-44ad-b8eb-76854d0293dc.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
Connection data:
Type of connection: PUSH IN.
General data:
Rail: TS 35.
UL 94 flammability rating: V-0.
Power supply:
Current consumption from Isys, typ.: 116 mA.
Feed current for IIN (input current path):
min.: 0 mA.
nominal: 5,000 mA.
max.: 5,000 mA.
Feed current for IIN (input current path), max.: 5 A.
Feed current for IOUT (output current path):
min.: 0 mA.
nominal: 5,000 mA.
max.: 5,000 mA.
Feed current for IOUT (output current path), max.: 5 A.
Supply voltage for outputs: 24 V DC +20 %/ -15 %.
Supply voltage system and inputs: 24 V DC +20 %/ -15 %.
System data:
Configuration interface: Micro USB 2.0.
Connection type: 2x RJ45 plug-in connectors.
Engineering tool: u-create web, u-OS.
Interface: 2x Ethernet TCP/IP, 1x Micro USB.
max. number of modules: 64.
Memory (Flash): 8 GB, 32 GB via microSD.
Module type: Controller.
Processor: Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM.
Programming environment: web-based.
Real-time clock: Battery buffered.
Transmission speed backplane bus, max.: 48 Mbit/s.
Important note:
Product information: The matching end brackets are included with the coupler.
