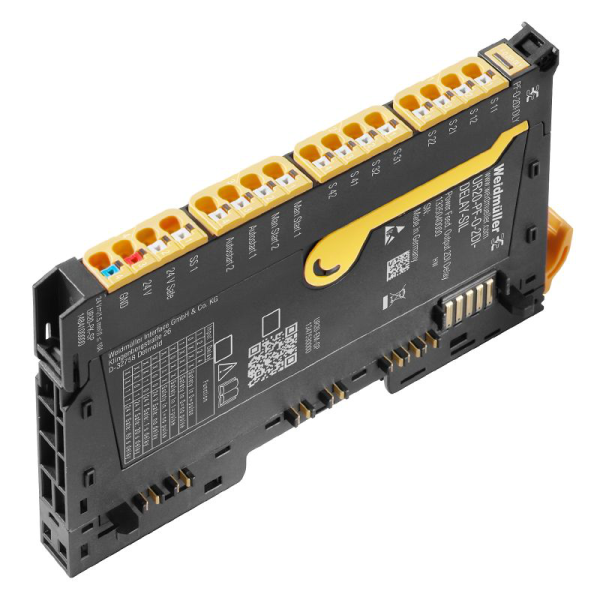

UR20-PF-O-2DI-DELAY-SIL
SKU: 1335040000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-PF-O-2DI-DELAY-SIL:
When it comes to industrial automation and machine building, safety technology is crucial.
Reducing risks and avoiding hazards for people and the environment requires solutions that meet strict regulations and legal criteria.
The u-remote system's safety modules include critical features such as emergency stop circuits and wire breakage or short-circuit detection.
They meet all SIL 3 standards as defined by IEC 62061 and EN ISO 13849-1, category 4, PL e, and ensure the safe functioning of your system.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 11.5 mm.
Width (inches): 0.453 inch.
Mounting dimension - height: 128 mm.
Net weight: 101 g.
Temperatures:
Storage temperature: -40 °C... +85 °C.
Operating temperature: -20 °C... +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
digital inputs:
Short-circuit detection: Yes.
Wire break detection: Yes.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, max. (AWG): AWG 16.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from IIN (the respective power segment): 35 mA.
Current consumption from Isys, typ.: 8 mA.
Feed current for IOUT (output current path):
min.: 8,050 mA.
nominal: 8,050 mA.
max.: 8,050 mA.
Feed current for IOUT (output current path), max.: 8,050 mA.
Supply voltage for outputs: 24 V DC +20 %/ -15 %.
Supply voltage system and inputs: 24 V DC +20 %/ -15 %.
Voltage supply: 24 V DC +20 %/ -15 %, via the system bus.
Safety characteristics in acc. with EN 61508:
HFT (hardware fault tolerance), inputs: 1.
Proportion of safety-related outages (SFF): 98 %.
Safety characteristics in acc. with EN ISO 13849:
MTTF: 100 a.
System data:
Field bus protocol:
PROFINET IRT.
PROFINET RT.
CC-Link IE TSN.
IEC 61162-450.
PROFIBUS DP-V1.
EtherCAT.
Modbus/TCP.
EtherNet/IP.
CANopen.
DeviceNet.
POWERLINK.
CC-Link.
Galvanic isolation: 500 V DC between the current paths.
Interface: u-remote system bus.
Module type: Safe power-feed module.
Transmission speed of system bus, max.: 48 Mbit.
