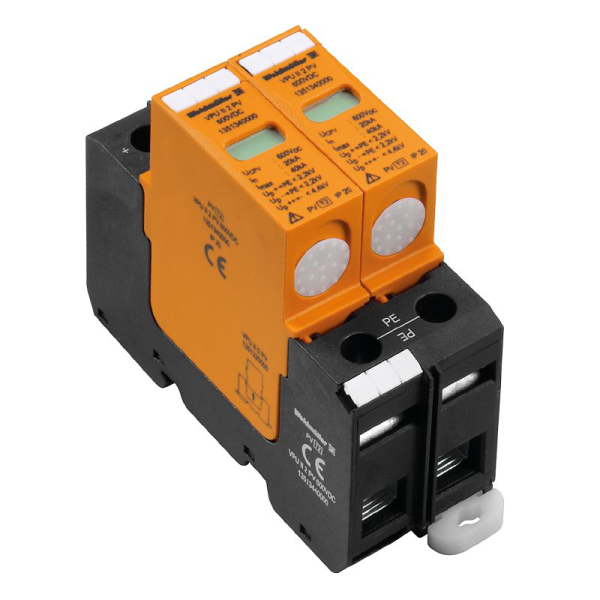

VPU II 2 PV 600V DC
SKU: 1351340000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
VPU II 2 PV 600V DC:
Version: Surge voltage arrester, low voltage, no telecom contact.
Type: VPU II 2 PV 600V DC.
Replacement parts: 1351320000.
Dimensions and Weight:
Depth: 69 mm.
Depth: 2.717 inches.
Height: 94 mm.
Height: 3.701 inches.
Width: 35.6 mm.
Width: 1.402 inches.
Mounting height: 75 mm.
Net weight: 290 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -40 °C...80 °C.
Operating temperature: -40 °C...70.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Colour: black, orange.
Design: Installation housing; 2TE, Insta IP 20.
Operating altitude: ≤ 2000 m.
Optical function display: green = OK; red = arrester is defective - replace.
Protection degree: IP20.
Rail: TS 35.
UL 94 flammability rating: V-0.
Version: without telecomm. contact.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: III.
Photovoltaic technical data:
Discharge current In (8/20 µs): 12.5 kA.
Discharge current, max. (8/20 µs): 40 kA.
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE: 600 V.
Operating height in the grounded PV system: ≤ 2000 m.
Operating height in ungrounded PV system: ≤ 2000 m.
Protection level Up (+/-): ≤ 4.4 kV.
Protection level Up (+/PE): ≤ 2.2 kV.
Protection level Up (-/PE): ≤ 2.2 kV.
PV system voltage, max. Ucpv: 600 V.
Requirements class: Type II.
Short-circuit curent ISCPV: 200 A.
Standards: EN 50539-11.
Total discharge current Itotal ( 8/20µs): 40.
Rated data IEC / EN:
Discharge current In (8/20µs) wire-PE: 20 kA.
Discharge current, max. (8/20 µs): 40 kA.
Leakage current at Un: 30 µA.
Max. continuous voltage, Uc (DC): 600 V.
Number of poles: 2.
PV voltage, acc. to IEC 60364-7-712: < 600 V.
Rated voltage (DC): 600 V.
Response time: ≤ 25 ns.
Signalling contact: No.
SPD type: T2.
Standards: EN 50539-11.
Voltage type: DC.
Connection data:
Stripping length: 15 mm.
Type of connection: Screw connection.
Stripping length, rated connection: 15 mm.
Tightening torque, min.: 2 Nm.
Tightening torque, max.: 3 Nm.
Clamping range, rated connection: 16 mm².
Clamping range, min.: 1.5 mm².
Clamping range, max.: 35 mm².
Wire cross-section, solid, min.: 1.5 mm².
Wire cross-section, solid, max.: 16 mm².
Wire connection cross section, finely stranded, min.: 1.5 mm².
Wire connection cross section, finely stranded, max.: 25 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 1.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 50 mm².
Connection cross-section, stranded, min.: 1.5 mm².
Connection cross-section, stranded, max.: 50 mm².
