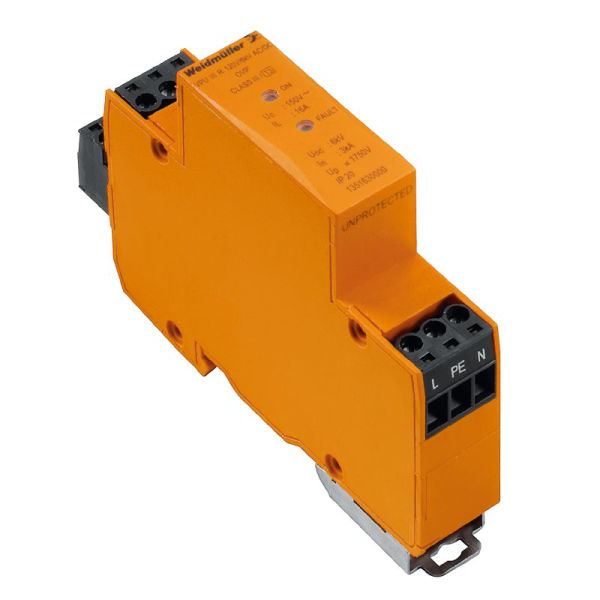

VPU III R 120V/6KV AC/DC
SKU: 1351630000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
VPU III R 120V/6KV AC/DC:
Surge protection of type III.
Compact Type III arrester for AC/DC protection in accordance with IEC 61643-11:2012.
Ideal for safeguarding terminals.
Installed near the equipment to be protected.
When the nominal current is higher than 16 A, it can be utilized as a single-port arrester.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 71.5 mm.
Depth (inches): 2.815 inch.
Height: 102 mm.
Height (inches): 4.016 inch.
Width: 18 mm.
Width (inches): 0.709 inch.
Net weight: 85 g.
Temperatures:
Storage temperature: -40 °C...70 °C.
Operating temperature: -40 °C...70 °C.
Humidity: 5 - 95% rel. humidity.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
Connection data, remote alert:
Connection type: Screw connection.
Cross-section for connected wire, solid core, max.: 1.5 mm².
Cross-section for connected wire, solid core, min.: 0.2 mm².
Max. torque: 0.5 Nm.
Stripping length: 5 mm.
General data:
Colour: orange.
Design: Installation housing; 1TE, Insta IP 20.
Optical function display: Green LED = OK, Red LED = arrester is defective, replace.
Protection degree: IP20.
Rail: TS 35.
Segment: Power distribution.
UL 94 flammability rating: V-0.
Version: with remote contact.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: II.
Rated data IEC / EN:
Combined pulse UOC: 6 kV.
Discharge current, max. (8/20 µs): 3 kA.
Energy coordination (≤10 m): Type II, Type III.
Fuse: 16 A.
Leakage current at Un: 30 µA.
Low voltage network: Single-phase.
Mains frequency at 250 Vmax: 50...60Hz.
Max. continuous voltage, Uc (AC): 150 V.
Max. continuous voltage, Uc (DC): 212 V.
Number of poles: 1.
PE conductor current IPE: 30 µA.
Protection level Up at IN (L/N-PE): ≤ 1.75 kV.
Rated current IN: 16 A.
Rated voltage (AC): 120 V.
Rated voltage (DC): 150 V.
Requirements category acc. to IEC 61643-11: Type III.
Requirements class, acc. to EN 61643-11: T3.
Response time: ≤ 100 ns.
Short-circuit current rating ISCCR: 1.5 kA.
Signalling contact: 250 V 10 A 1 NC.
Standards: IEC61643-11, EN61643-11.
Temporary surge voltage (over-voltage) - TOV: 229 V.
Voltage type: AC/DC.
Connection data:
Stripping length: 7 mm.
Type of connection: Screw connection.
Stripping length, rated connection: 7 mm.
Tightening torque, min.: 0.4 Nm.
Tightening torque, max.: 0.5 Nm.
Clamping range, rated connection: 2.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire cross-section, solid, min.: 0.13 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
Connection cross-section, stranded, min.: 0.5 mm².
Connection cross-section, stranded, max.: 2.5 mm².
Guarantee:
Time interval: 5 years.
