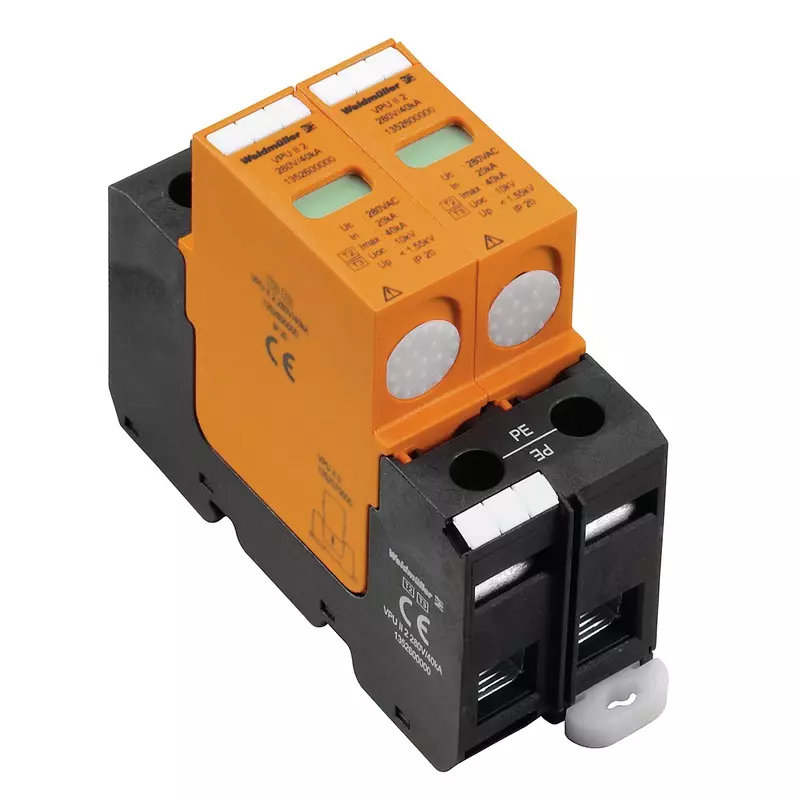

VPU II 2 R 280V/40KA
SKU: 1352620000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing avialable on request
Description:
The interface provides lightning and surge protection with a pluggable arrester, coded voltage level, excellent energy absorption, short spark time, and no need for follow-current installation on the distribution board.
Type II/III surge prevention. Uc: 280 V.
Suitable with 230/400-volt mains systems.
Pluggable arrester.
Voltage levels are coded.
High energy absorption and fast time to sparkover.
There is no current follow up.
Installation in the distribution board.
Thermal protection function.
Coordination with VPU Type I.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weight:
Width: 35.6 mm.
Depth: 69 mm.
Height: 106 mm.
Mounting dimension – height: 75 mm.
Net weight: 288 g.
Temperatures:
Operating temperature: -40 °C...70 °C.
Storage temperature: -40 °C...80 °C.
Discharge surge current of top part:
Limiting discharge current (8/20 µs) Imax: 40 kA.
Rated discharge current (8/20 µs) In: 20 kA.
Colour: Black, Arrestor Red.
Design: Installation housing, 2TE Insta IP20.
Lighting Arrestor: Yes.
Mounting rail: TS 35, TS 35 x 15, TS 35 x 7.5.
Optical Function display: Green = OK; Red = arrestor is defective – replace.
Degree of protection: IP20.
UL 94 flammability rating: V-0.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: III.
Protection level UP (typ.): ≤ 1.55 kV.
