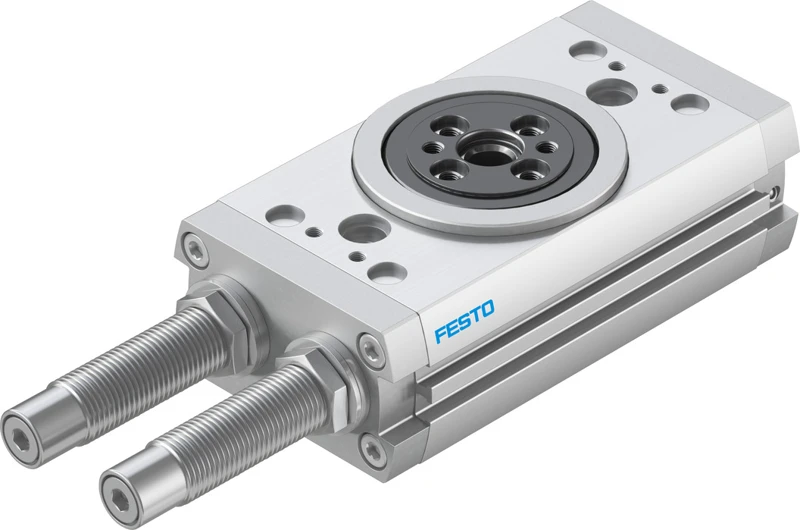

Twin-piston semi-rotary drives DRRD, double-acting, DRRD-25-180-FH-Y9A
SKU: 1360248
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Twin-piston semi-rotary drives DRRD, double-acting
• Size 25
• Cushioning angle 79 deg
• Setting range of swivel angle on both sides +10/-190 deg
• Swivel angle 180 deg
• Cushioning Internal hydraulic cushioning normal
• Mounting position optional
• Design Rack and pinion
• Position detection Via proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Twin-piston semi-rotary drives DRRD, double-acting
• Extremely accurate in the end positions
• Very high load-bearing capacity
• Very good axial run-out at the flanged shaft
• Very high mass moments of inertia
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
