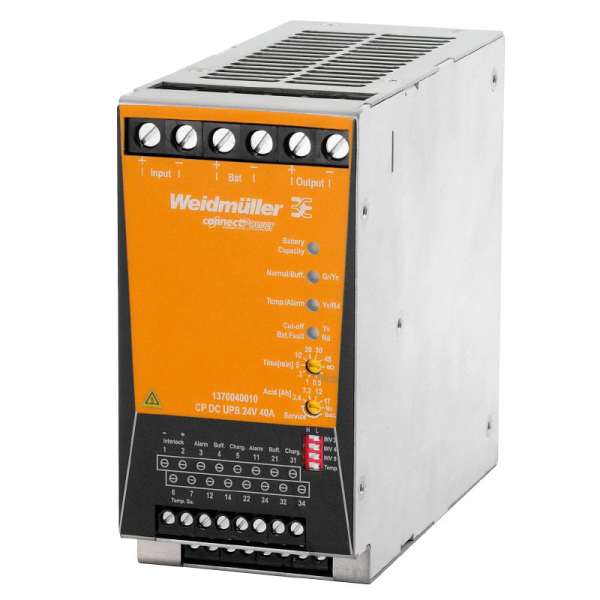

CP DC UPS 24V 40A
SKU: 1370040010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
CP DC UPS 40A, 24V:
The UPS control unit, the power supply unit, and the related battery module make up the entire DC UPS system.
In normal operation, the input voltage from the UPS control unit is directly connected to the load.
In the case of a mains failure (a drop in the DC input voltage), the system immediately shifts to battery operation.
Once the mains power has been restored, the system resumes regular operation and the integrated charger fully recharges the battery.
Three relay outputs, three extra active transistor outputs, and a control input to lock battery operation provide full remote control via SPS or DCS.
Numerous modes of operation and an easy-to-use status display provide speedy fault detection and application modification.
Dimensions and weights:
Depth: 150 mm.
Depth (inches): 5.905 inch.
Height: 130 mm.
Height (inches): 5.118 inch.
Width: 66 mm.
Width (inches): 2.598 inch.
Net weight: 1,051.8 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -25 °C - 70 °C.
Humidity: 5 - 95 %, no condensation.
Buy currently uses Select Automation shop pricing and checkout.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d6c68c9e-3e33-4fa9-920e-331473bf0422.
RoHS Compliance Status: Compliant.
Battery module:
Parallel connection option: yes, max. 2.
Rated voltage: 24 V.
Storage medium:
3.4 Ah.
7.2 Ah.
12 Ah.
17 Ah.
Selectable with rotary switch.
Integrated battery charger:
Battery availability test: every minute.
Charging current: 0.15 cA.
Charging feature: IU characteristic curve.
Charging voltage (temperature compensated): 27, 48 V @ 20°C.
Temperature coefficient: - 48 mV / °C.
Operating interfaces and control inputs:
Function DIP switch: Inversion of transistor outputs, Operation without temperature probe.
Remote disconnection (Interlock): Yes.
Selector switch battery:
3.4 Ah.
7.2 Ah.
12 Ah.
17 Ah.
No Battery.
Service.
Selector switch buffer times:
0.5 min.
1 min.
3 min.
5 min.
10 min.
20 min.
30 min.
45 min.
∞.
∞ w/0.
Temperature probe: NTC 100 kΩ.
Input:
DC current consumption: max. 200 mA (without battery), max. 0.5 A (with fully charged battery).
DC input voltage range: 20...30 V DC.
Input current: ≤ 43 A.
Input fuse (internal): Yes.
Max. approved input current: 52 A.
Rated input voltage: 24 V DC.
Wire connection method: Screw connection.
Output:
Continous output current @ UNominal:
48 A @ 45 °C.
24 A @ 70 °C.
40 A @ 60 °C.
Nominal output current for Unom: 40 A @ 60 °C.
Output current, max.: 48 A.
Output voltage, note: Vo = Vin - 0.2 V normal operation (Imax), Vo = Vin - 0.3 V battery supply (I max).
Overload protection: Yes.
Parallel connection option: yes, max. 2, Yes, with diode module.
Protection against inverse voltage: Yes.
Rated output voltage: 24 V DC ± 1 %.
Residual ripple, breaking spikes: < 50 mVPP @ 24 V DC, IN.
Temperature coefficient: - 48 mV / °C.
Temperature probe: NTC 100 kΩ.
Wire connection method: Screw connection.
General data:
Buffer times: Depending on the connected battery.
Clip-in foot: metal.
Current limiting: > 120% IN.
Degree of efficiency:
≥ 96% normal mode, battery is being charged.
≥ 98% normal mode, battery is charged.
≥ 98% buffer mode.
Housing version: Metal, corrosion resistant.
Humidity: 5...95 %, no condensation.
Mounting position, installation notice: Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
MTBF:
According to Standard: SN 29500.
Operating time (hours), min.: 1,860,000 h.
Ambient temperature: 25 °C.
Input voltage: 24 V.
Output power: 960 W.
Duty cycle: 100 %.
According to Standard: SN 29500.
Operating time (hours), min.: 906,400 h.
Ambient temperature: 40 °C.
Input voltage: 24 V.
Output power: 960 W.
Duty cycle: 100 %.
Power loss: < 10 W.
Protection against reverse voltages from the load: 32…34 V DC.
Protection degree: IP20.
Short-circuit protection: Yes.
Storage medium:
3.4 Ah.
7.2 Ah.
12 Ah.
17 Ah.
Selectable with rotary switch.
Surge voltage category: III.
EMC / shock / vibration:
Interference immunity test acc. to: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips).
Noise emission in accordance with EN55032: Class B.
Shock resistance IEC 60068-2-27: 30 g in all directions.
Vibration resistance IEC 60068-2-6: 2.3 g.
Insulation coordination:
electrical isolation, input-earth: 1 kV.
electrical isolation, output-earth: 1 kV.
Insulation voltage: 1 kV DC.
Pollution severity: 2.
Protection class: III, with no ground connection, for SELV.
Surge voltage category: III.
Electrical safety (applied standards):
Electrical machine equipment: Acc. to EN60204.
For use with electronic equipment: Acc. to EN50178 / VDE0160.
Protection against dangerous shock currents: Acc. to VDE0106-101.
Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
Safety transformers for switch-mode power supplies: According to EN 61558-2-16.
Connection data (input):
Conductor cross-section, AWG/kcmil , max.: 6.
Conductor cross-section, AWG/kcmil , min.: 26.
Conductor cross-section, flexible , min.: 0.5 mm².
Conductor cross-section, rigid , max.: 16 mm².
Conductor cross-section, rigid , min.: 0.5 mm².
Reverse polarity protection: Yes.
Tightening torque, max.: 1.5 Nm.
Tightening torque, min.: 1.2 Nm.
Wire connection cross section, flexible (input), max.: 16 mm².
Connection data (output):
Conductor cross-section, AWG/kcmil , max.: 6.
Conductor cross-section, AWG/kcmil , min.: 26.
Conductor cross-section, flexible , max.: 16 mm².
Conductor cross-section, flexible , min.: 0.5 mm².
Conductor cross-section, rigid , max.: 16 mm².
Conductor cross-section, rigid , min.: 0.6 mm².
Reverse polarity protection: Yes.
Tightening torque, max.: 1.5 Nm.
Tightening torque, min.: 1.2 Nm.
Connection data (signal):
Wire connection cross-section, flexible (signal), max.: 1.5 mm².
Wire connection cross-section, flexible (signal), min.: 0.2 mm².
Wire connection method: Screw connection.
Wire cross-section, AWG/kcmil , max.: 15.
Wire cross-section, AWG/kcmil , min.: 30.
Wire cross-section, solid , max.: 1.5 mm².
Wire cross-section, solid , min.: 0.2 mm².
Signalling:
Floating contact: Yes.
Status indicator:
Three-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing).
Green/yellow LED: normal / buffering.
Yellow/red LED: temperature alarm / alarm.
Yellow/red LED: switch-off / battery fault.
Status relay (max. load): Fault (alarm) (30 V AC/DC 0.1 A), Battery operation (buff.) (30 V AC/DC 0.1 A), Laden (Charg.) (30V AC/DC 0,1A).
Transistor outputs (24&...27 V DC max. load 150 mA): Battery operation (buff.), Charging ,Fault (alarm).
Approbations:
Certificate no. (cULus): E258476.
Institute (cULus): CULUS.
