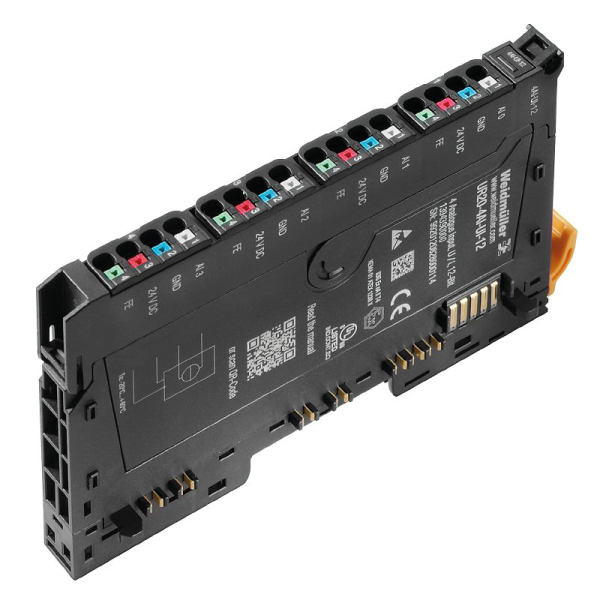

UR20-4AI-UI-12
SKU: 1394390000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-4AI-UI-12:
Analogue input modules for the u-remote system are available in a variety of resolutions and wiring options.
A number of variants with 12- and 16-bit resolution that can record as accurately as possible up to 4 analogue sensors with +/-10 V, +/-5 V, 0...10 V, 0...5 V, 2...10 V, 1...5 V, 0...20 mA, or 4...20 mA.
Plug-in connectors can link sensors with either 2- or 3-wire technology.
The measurement range settings can be modified individually for each channel.
Every channel also has a unique status LED.
A specific variation for Weidmüller interface devices allows current measurements with 16-bit resolution and maximum precision for 8 sensors at once (0...20 mA or 4...20 mA).
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 11.5 mm.
Width (inches): 0.453 inch.
Mounting dimension - height: 128 mm.
Net weight: 87 g.
Temperatures:
Storage temperature: -40 °C - +85 °C.
Operating temperature: -20 °C - +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
analogue inputs:
Accuracy: 0.1% FSR.
Conversion time: 1 ms.
Individual channel diagnosis: No.
Internal resistance I: 41.2 Ω.
Internal resistance U: 100 kΩ.
Module diagnosis: Yes.
Number of analogue inputs: 4.
Resolution: 12-bit.
Response time: < 50 ms.
Reverse polarity protection: Yes.
Sensor connection: 2-wire.
3-wire.
3-wire + FE.
Sensor supply: Yes.
Sensor supply:
minimum: 0 mA.
nominal: 750 mA.
maximum: 750 mA.
Short-circuit-proof: Yes.
Type:
1. U (0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V).
2. I (0–20 mA or 4–20 mA).
Adjustable input for current or voltage.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, maximum: 1.5 mm².
Wire connection cross section, finely stranded, minimum: 0.14 mm².
Wire cross-section, finely stranded, maximum (AWG): AWG 16.
Wire cross-section, finely stranded, minimum (AWG): AWG 26.
Wire cross-section, solid, maximum: 1.5 mm².
Wire cross-section, solid, maximum (AWG): AWG 16.
Wire cross-section, solid, minimum: 0.14 mm².
Wire cross-section, solid, minimum (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc.to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from IIN (the respective power segment): 25 mA + sensor feed.
Current consumption from Isys, typ.: 8 mA.
Reverse polarity protection: Yes.
Voltage supply: 24 V DC +20 %/ -15 % via the system bus.
System data:
Diagnostic data: 1 Bit.
Field bus protocol: PROFINET IRT, PROFINET RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link.
Galvanic isolation: 500 V DC between the current paths.
Interface: u-remote system bus.
Module type: Analogue input module.
Parameter data: 14 Byte.
Process data: 8 Byte.
Transmission speed of system bus, maximum: 48 Mbit.
