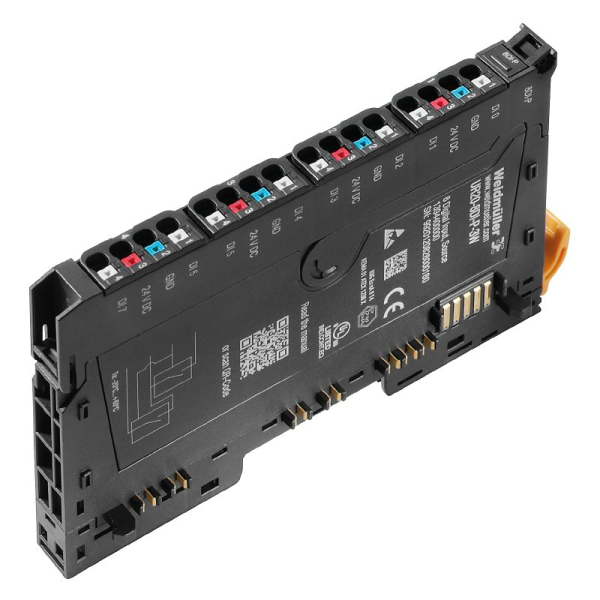

UR20-8DI-P-3W
SKU: 1394400000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UR20-8DI-P-3W:
Weidmüller offers a variety of variants of its digital input modules, which are mostly used to receive binary control signals from switches, proximity switches, transmitters, and sensors.
They will meet your need for well-coordinated project planning with reserve potential because of its adaptable design.
All modules are available in 4, 8, or 16 input configurations and completely conform with IEC 61131-2.
The digital input modules are available in P- or N-switching configurations.
The digital inputs are for Type 1 and Type 3 sensors as per the specification.
These devices have a maximum input frequency of 1 kHz and can be utilized for a variety of applications.
The PLC interface unit variation uses system cables to quickly connect to the well-known Weidmüller interface sub-assemblies.
This provides a quick integration into your overall system.
Two modules with a timestamp function can collect binary signals and provide a resolution of 1μs.
The UR20-4DI-2W-230V-AC module, which accepts a currant up to 230V as an input signal, opens other solutions.
The module electronics draw energy from the input current path (UIN) to power the associated sensors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 76 mm.
Depth (inches): 2.992 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 11.5 mm.
Width (inches): 0.453 inch.
Mounting dimension - height: 128 mm.
Net weight: 83 g.
Temperatures:
Storage temperature: -40 °C - +85 °C.
Operating temperature: -20 °C - +60 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
Digital inputs:
Individual channel diagnosis: No.
Input filter: configurable.
Input voltage, high: > 11 V.
Input voltage, low: <5 V.
Module diagnosis: Yes.
Number of digital inputs: 8.
Reverse polarity protection: Yes.
Sensor connection: 2-wire, 3-wire.
Sensor supply: Yes.
Sensor supply:
minimum: 0 mA.
nominal: 750 mA.
maximum: 8,000 mA.
Type: Types 1 and 3, EN 61131-2.
Connection data:
Type of connection: PUSH IN.
Wire connection cross section, finely stranded, maximum: 1.5 mm².
Wire connection cross section, finely stranded, minimum: 0.14 mm².
Wire cross-section, finely stranded, maximum (AWG): AWG 16.
Wire cross-section, finely stranded, minimum (AWG): AWG 26.
Wire cross-section, solid, maximum: 1.5 mm².
Wire cross-section, solid, maximum (AWG): AWG 16.
Wire cross-section, solid, minimum: 0.14 mm².
Wire cross-section, solid, minimum (AWG): AWG 26.
General data:
Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
Pollution severity: 2.
Rail: TS 35.
Shock: 15 g over 11 ms, half sinus wave, acc.to IEC 60068-2-27.
Surge voltage category: II.
Test voltage: 500 V.
UL 94 flammability rating: V-0.
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
Current consumption from IIN (the respective power segment): <22 mA + sensor feed.
Current consumption from Isys, typ.: 8 mA.
Reverse polarity protection: Yes.
Voltage supply: 24 V DC +20 %/ -15 % via the system bus.
System data:
Diagnostic data: 1 Bit.
Field bus protocol: PROFINET IRT, PROFINET RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link.
Galvanic isolation: 500 V DC between the current paths.
Interface: u-remote system bus.
Module type: Digital input module.
Possible connection: 3-wire, Single-conductor, 2-wire.
Process data: 1 Byte.
Transmission speed of system bus, maximum: 48 Mbit.
