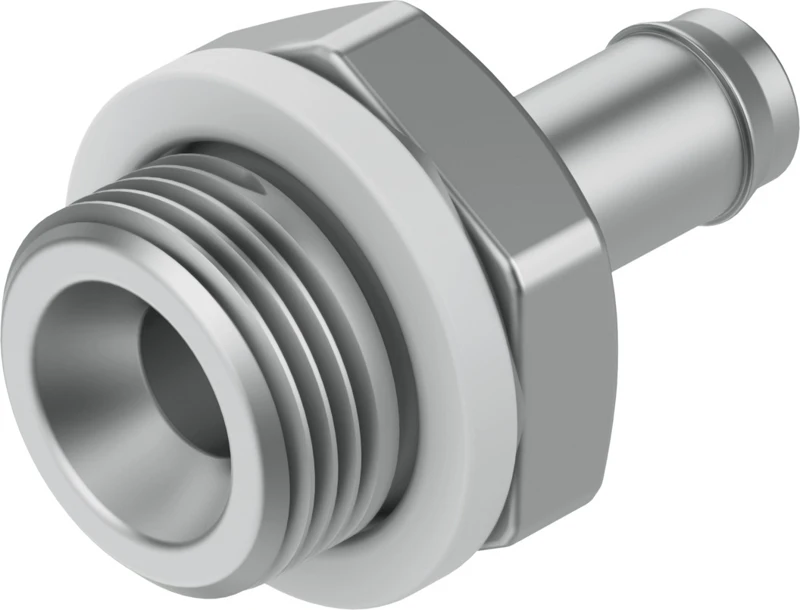

Barbed fitting, CRCN-1/8-PK-6

Specifications • Barbed fitting CRCN • Nominal size 5.3 mm • Type of seal on screwed plug Sealing ring • Size of pack 10 • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitable for use with food See supplementary material information • Ambient temperature 0 °C ... 60 °C • Product weight 7.5 g • Pneumatic connection, port 1 Male thread G1/8 • Pneumatic connection, port 2 For tubing outside diameter of 8 mm
