HG 140 Anti Condensation Heater 100W Power
SKU: 14007.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

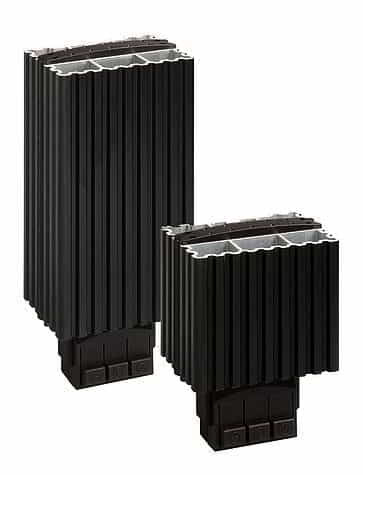

The HG 140 anti-condensation heater for panels:
These heaters are employed in enclosures where condensation damage must be avoided or where the temperature cannot fall below a certain level.
The aluminium profile heater body design creates a chimney effect that uniformly distributes heat.
The heaters are intended to be left on all the time.
Installing pressure clamp connections is quicker and easier.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Consumption: 100 W.
Voltage Range: 120 to 240 V AC/DC.
Dimensions: 139.7 x 70 x 50 mm.
Protection Rating: IP20.
Operating Temperature Range: -45 to 70°C.
Features:
Material: Anodized extruded aluminium body.
Heating Element: PTC resistor.
Mounting: DIN rail.
Connection: Pressure clamp connectors for stranded and rigid wire.
Surface Temperature: 130°C.
Design: The aluminium profile heater body design has a chimney effect, distributing heat evenly.
Operation: Designed for permanent operation.
Installation: Quick and easy with pressure clamp connectors.
