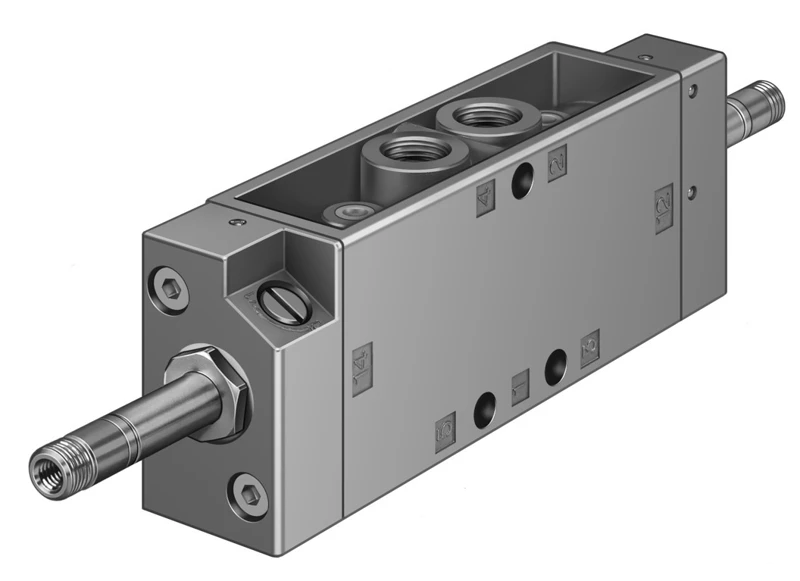

Solenoid valve, JMFH-5-1/8-S

Specifications • Solenoid valves JMFH, Tiger Classic • Valve function 5/2 double solenoid • Type of actuation Pneumatic • Construction width 26 mm • Standard nominal flow rate (standardised to DIN 1343) 600 l/min • Pneumatic working port G1/8 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Design Poppet seat • Approval c UL us - Recognized (OL) • Degree of protection IP65 • Nominal size 5 mm • Grid dimension 27 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
