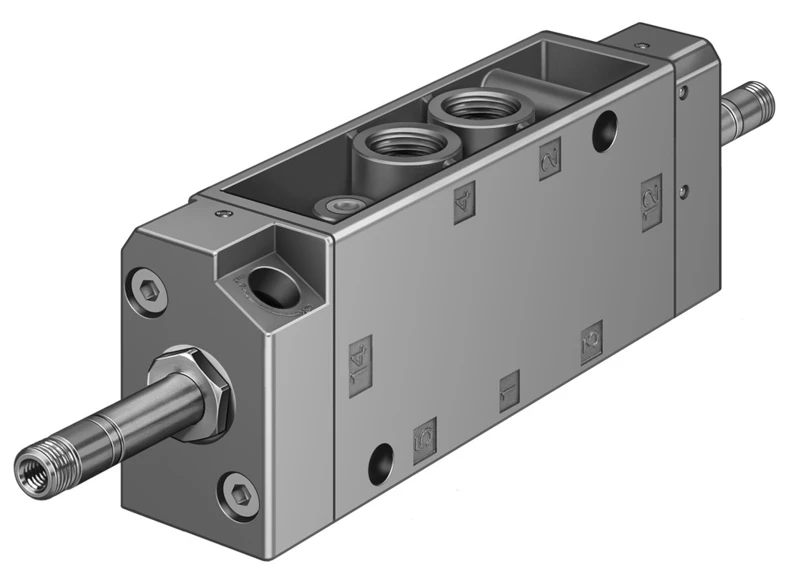

Solenoid valve, JMFH-5-1/4-S

Specifications • Solenoid valves JMFH, Tiger Classic • Valve function 5/2 double solenoid • Type of actuation Electric • Construction width 30.5 mm • Standard nominal flow rate (standardised to DIN 1343) 1100 l/min • Pneumatic working port G1/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Design Poppet seat • Approval c UL us - Recognized (OL) • Degree of protection IP65 • Nominal size 7 mm • Grid dimension 32 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
