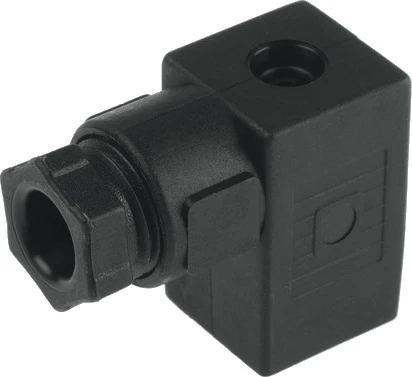

Plug socket, MSSD-E
SKU: 14098
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plug socket
• Type of mounting On solenoid valve via M3 central screw
• Mounting position optional
• Product weight 8 g
• Electrical connection 1 Angled socket, square design, 3-pin, type C
• Electrical connection 2 Screw terminal
• Operational voltage range DC 0 V ... 300 V
• Operational voltage range AC 0 V ... 250 V
• Current rating at 40° C 6 A
• Cable fitting Pg7
• Cable diameter 6 mm ... 8 mm
• Connection cross section 0.75 mm²
• Degree of protection IP65
• Ambient temperature -25 °C ... 90 °C
Buy currently uses Select Automation shop pricing and checkout.
Plug socket MSSD
• For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils
• For connecting individual valves
• Available with LED display
