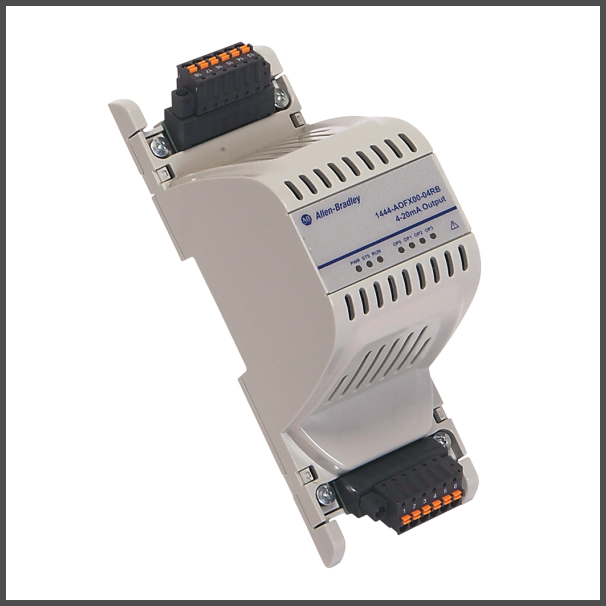

Expansion 4-20mA Output Module

Specifications: Number Of Outlet: 4. Number of status indicators: 6. Status indicator: Power channel status (4), Local bus status. Accuracy: 1% @ full scale. Analogue inputs configurable: False. Analogue outputs configurable: False. Communication time-out, fixed: 1 s. Conductor type: Copper. Consumption: 0.76 W. Current: 18mA @ 24V (22...8mA @ 18...32V). Dissipation: 3.6 W. Input signal, configurable: False. Input, current: False. Input, resistance thermometer: False. Input, resistor: False. Input, thermocouple: False. Input, voltage: False. Isolation voltage: 50V (continuous), basic insulation type between signal ports and AUX bus, no isolation between individual signal ports, Type tested at 707V DC @ 60s. Number of analogue inputs: 0. Number of analogue outputs: 4. Output signal configurable: True. Output, current: True. Output, voltage: False. Type of electric connection: Screw-/spring clA connection. Voltage: North American: 18...32V, max 8 A, limited voltage source. Wire type: Shielded on all signal ports. Wiring category: 2 - on signal ports. Current output, max: 20 mA per output channel. Not OK output: Configurable: force low (2.9 mA), force high (>20 mA), hold current level. Number of channels: 4. Protection: Insensitive to polarity. Communication: A digital network that is used between a main module and its expansion modules is implemented on the local bus; Communication does not link main modules. Power: Passes power from each main module (1444-DYN04-01RA) to its expansion modules, Power is not passed between main modules, when redundant power supplies are connected to a main module, only the voted power source is distributed to its expansion modules. TTL signals: Dual independent TTL signals, with tachom sensor status, are passed on the Local Bus, there can be only one tachom expansion module on a local bus, The TTL signal can serve up to six main modules. Conducted RF immunity: 10V rms with 1 kHz sinewave 80% AM from 150 kHz...80 MHz Conductor/insulation temperature rating: 85 °C. Conformal coating: All printed circuit boards are conformal coated in accordance with IPC-A-610C and in compliance with: IPC-CC-830 B, UL508. EFT/B immunity: ±2kV @ 5kHz on shielded signal ports. ESD immunity: 6 kV contact discharges, 8 kV air discharges. Emissions: IEC 61000-6-4. Nonoperating temperature: -40 °C. Operating temperature: -25 °C. Operating temperature (spring type only), max: 105 °C. Radiated RF immunity: 10 V/m with 1 kHz sinewave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 1 V/m with 1 kHz sinewave 80% AM from 2000...2700 MHz Relative humidity: 5...95% noncondensing. Surge transient immunity: ±2 kV line-earth (CM) on shielded signal ports. Surrounding air temperature, max: 70 °C. Depth: With terminal base: 158 mm. Enclosure type rating: None (open style). Height: With terminal base: 96 mm. Width: With terminal base: 54 mm. Conductor UL/cUL AWG (screw type only): 0.05 mm². Conductor UL/cUL AWG (spring type only): 0.08 mm². Conductor cross section AWG/kcmil: 0.08. Conductor cross section solid or stranded: 0.14. Conductor cross-section stranded with ferrule with plastic sleeve: 0.25. Conductor cross-section stranded with ferrule without plastic sleeve: 0.25. Shock: Operating: 15 G. Stripping length: 9 mm. Torque (screw type only): 0.22 nm. Vibration: 2.0 G @ 10…500 Hz. Indication: Update module status indicator. Output behaviour on fault options: No action.   Integrated Condition Monitoring System Dynamix ™ 1444 Machinery protection and condition monitoring of rotating and reciprocating assets. Distributed I/O on Ethernet/IP. Easy integration and setup in Studio 5000 Logix Designer®. Rugged, conformally coated and approved for electrical safety and hazardous areas. Expansion modules available for additional capabilities. Enable Smart Machine strategy with the Dynamix 1444 series. Don’t let unplanned downtime impact your manufacturing objectives. The Dynamix 1444 series provide a distributed solution for protecting or monitoring the condition of your critical machinery. The dynamic measurement module can support dynamic and static measurements to realize the benefits of a condition-based maintenance or a predictive maintenance program. As a part of Rockwell Automation’s Integrated Architecture, other system components such as controllers, visualization products, other input/output products, and more can be easily applied to meet the specific needs of the application.
