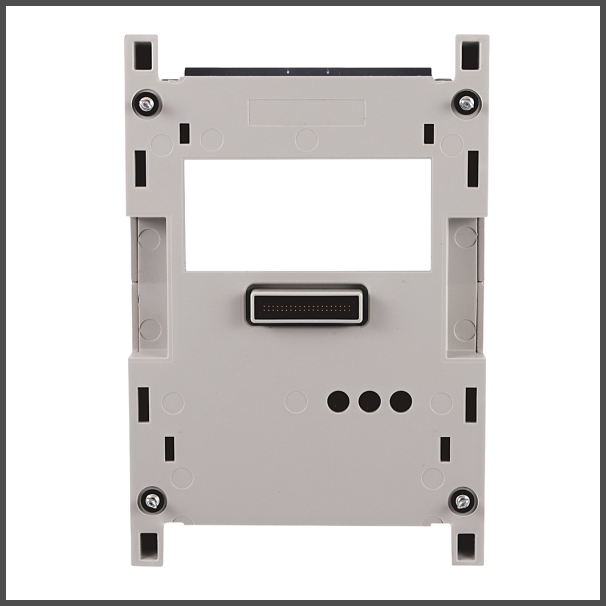

A Terminal Base

Specifications: Auxiliary bus voltage range: 18...32V 8A maximum. Front built-in possible: True. Input voltage at DC: 18 V. Input voltage range: North American: 18...32V, max 8 A, limited voltage source. Max. input current DC: 8 A. Number of slots: 1. Type of output voltage: DC. Type of voltage (input voltage): DC. With integrated power supply: False. Conducted RF immunity: 10V rms with 1 kHz sinewave 80% AM from 150 kHz...80 MHz ESD immunity: 6 kV contact discharges, 8 kV air discharges. Emissions: IEC 61000-6-4. Nonoperating temperature: -40 °C. Operating temperature: -25 °C. Radiated RF immunity: 10 V/m with 1 kHz sinewave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM 900 MHz, 3 V/m with 1 kHz sinewave 80% AM from 2000...2700 MHz Relative humidity: 5...95% noncondensing. Surrounding air temperature, max: 70 °C. Mechanical: DIN rail: 35 x 7.5 mm according to EN 50022, BS 5584 or DIN 46277-6. Depth: 155.5 mm. Enclosure type rating: None (open style). Height: 116 mm. Rack-assembly possible: True. Rail mounting possible: True. Shock: Operating: 15 G. Vibration: 2.0 G @ 10…500 Hz. Wall mounting/direct mounting: True. Weight: 204.12 g. Width: 103.5 mm. Construction: Conformal coating: All printed circuit boards are conformal coated in accordance with IPC-A-610C and in compliance with: IPC-CC-830 B, UL508.   Integrated Condition Monitoring System Dynamix ™ 1444 Machinery protection and condition monitoring of rotating and reciprocating assets. Distributed I/O on Ethernet/IP. Easy integration and setup in Studio 5000 Logix Designer®. Rugged, conformally coated and approved for electrical safety and hazardous areas. Expansion modules available for additional capabilities. Enable Smart Machine strategy with the Dynamix 1444 series. Don’t let unplanned downtime impact your manufacturing objectives. The Dynamix 1444 series provide a distributed solution for protecting or monitoring the condition of your critical machinery. The dynamic measurement module can support dynamic and static measurements to realize the benefits of a condition-based maintenance or a predictive maintenance program. As a part of Rockwell Automation’s Integrated Architecture, other system components such as controllers, visualization products, other input/output products, and more can be easily applied to meet the specific needs of the application.
