PZ 10 HEX
SKU: 1445070000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

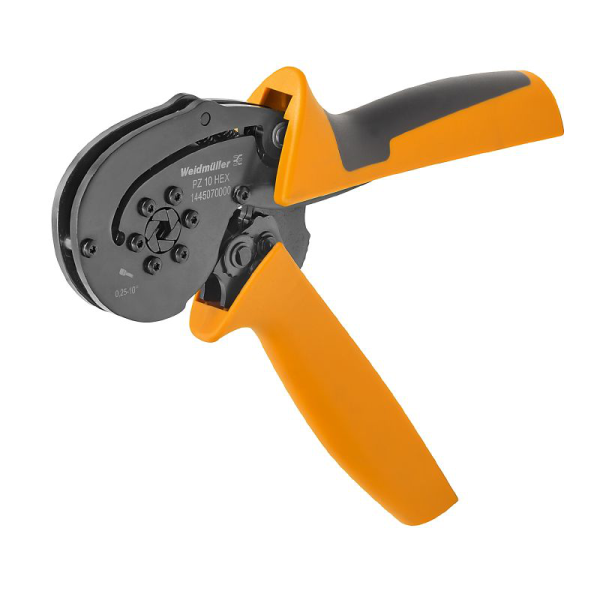

PZ 10 HEX:
Wire end ferrule crimping tools, both with and without plastic collars.
A ratchet ensures accurate crimping.
In the event of an improper operation, select the Release option.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Width: 195 mm.
Width (inches): 7.677 inch.
Net weight: 600 g.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
Description of article: (1) Crimping tool.
Description of contact:
Conductor cross-section, max. AWG: AWG 8.
Conductor cross-section, min. AWG: AWG 24.
Crimping range, max.: 10 mm².
Crimping range, min.: 0.25 mm².
Type of contact: Wire-end ferrules with/without plastic collars.
tool data crimping:
Crimping type/profile: Hexagonal crimp.
Wire end ferrules cross-section, max.: 10 mm².
Wire end ferrules cross-section, min.: 0.25 mm².
