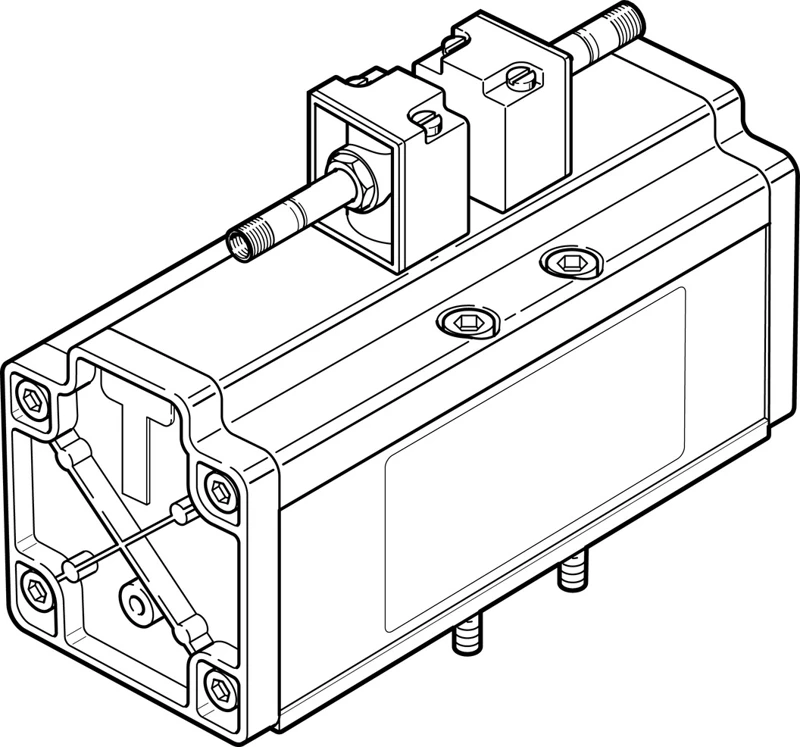

Solenoid valve, MDH-5/3E-3/4-D-4

Specifications • Standards-based valves to ISO 5599-1, square plug type A • Valve function 5/3 exhausted • Type of actuation Electric • Construction width 76 mm • Standard nominal flow rate (standardised to DIN 1343) 4800 l/min • Pneumatic working port Sub-base size 4 to ISO 5599-1, G3/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 3 bar ... 16 bar • Design Piston gate valve • Type of reset Mechanical spring
