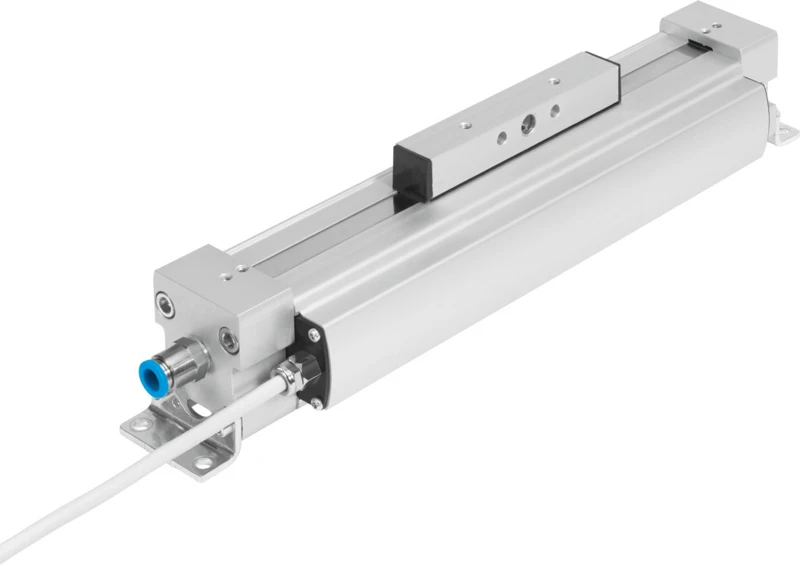

Linear drive, DDLI-40- -
SKU: 1463452
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drives DDLI, with integrated displacement encoder
• Stroke 100 mm ... 2000 mm
• Piston diameter 40 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Position detection With integrated displacement encoder
• Operating pressure 0.2 MPa ... 0.8 MPa
• Operating pressure 2 bar ... 8 bar
• Operating pressure 29 psi ... 116 psi
• Mode of operation Double-acting
• Approval RCM trademark
Buy currently uses Select Automation shop pricing and checkout.
Linear drive with displacement encoder DDLI
• Pneumatic positioning axis with contactless measuring displacement encoder for attaching to the customer's own guides.
• Based on linear drive DGC-K
• Without guide
• With displacement encoder for contactless measurement
• Suitable for positioning with axis controller CPX-CMAX
• Suitable for end-position control with end-position controller CPX-CMPX or SPC11
• Measures absolute values
• Can be used as a measuring cylinder
• Degree of protection IP67
• For attachment to customer's own guide
• Supply ports on end face
