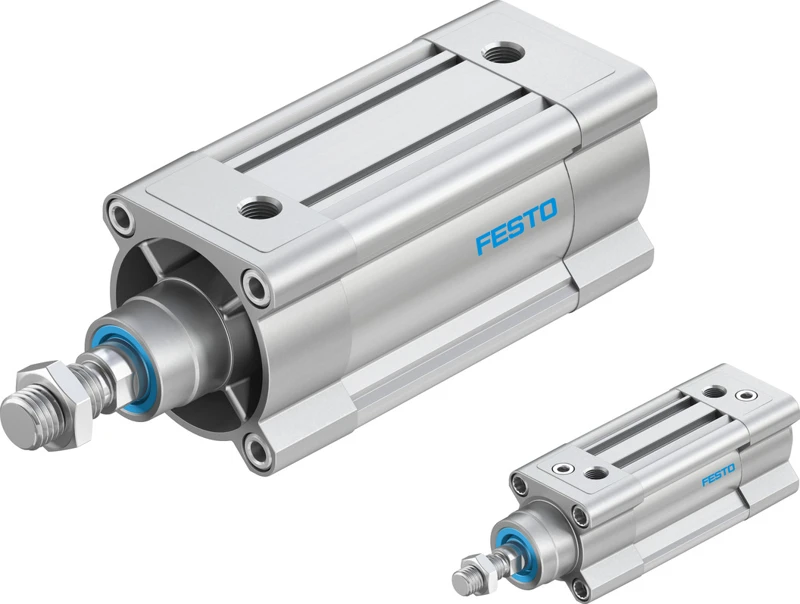

ISO cylinder, DSBC-...-50- -
SKU: 1463770
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, ISO 15552
• Stroke 1 mm ... 2800 mm
• Piston diameter 50 mm
• Piston rod thread M16x1.5, M10
• Torsional backlash at piston rod +/- -0.45 deg ... 0.45 deg
• Based on standard ISO 15552
• Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Conforms to standard ISO 15552
• Piston-rod end Male thread, Female thread
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinder DSBC
• Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• ISO 15552 (ISO 6431, VDMA 24562)
• Standard profile with two sensor slots
• Wide range of variants for customised applications
• Comprehensive range of mounting accessories for just about every type of installation
• For position sensing
• Variants recommended for production systems for manufacturing lithium-ion batteries
