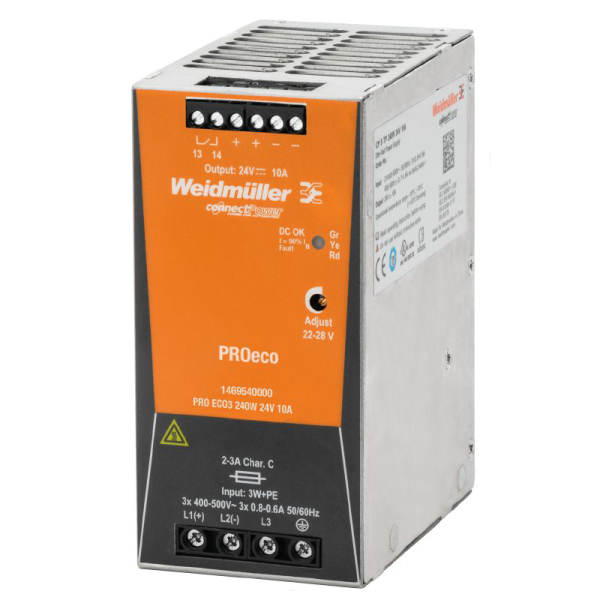

PRO ECO3 240W 24V 10A
SKU: 1469540000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
PRO ECO3 120W 24V 5A:
You're seeking for a reliable power supply with simple features.
With PROeco, you may get low-cost switch-mode power supply units with excellent efficiency and system capability.
High-performance switch mode power supply units can provide significant competitive advantages in machine production.
The low-cost PROeco series provides basic functions while delivering excellent performance and versatility.
Our PROeco switch-mode power supply units are incredibly easy to maintain, have a compact design, and great efficiency.
Temperature protection, short-circuit and overload resistance allow them to be employed in a wide range of applications.
PROeco systems include comprehensive safety features, compatibility with diode and capacitance modules, and UPS components for redundant power supply setup.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 100 mm.
Depth (inches): 3.937 inch.
Height: 125 mm.
Height (inches): 4.921 inch.
Width: 60 mm.
Width (inches): 2.362 inch.
Net weight: 957 g.
Temperatures:
Storage temperature: -40 °C...85 °C.
Operating temperature: -25 °C...70 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.
eshop_Filter_02_03_Power_Supplies:
Product type: Power supply, switch-mode power supply unit.
Rated data UL:
Certificate No. (cURus): E255651.
Input:
AC input voltage range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC.
Connection system: Screw connection.
Current consumption in relation to the input voltage:
Voltage type: 3-phase AC.
Input voltage: 400 V.
Input current: 0.8 A.
Voltage type: 3-phase AC.
Input voltage: 500 V.
Input current: 0.6 A.
Voltage type: DC.
Input voltage: 800 V.
Input current: 0.4 A.
Voltage type: DC.
Input voltage: 450 V.
Input current: 0.7 A.
DC input voltage range: 450...800 V DC.
Frequency range AC: 47...63 Hz.
Input frequency: 47...63 Hz.
Input fuse (internal): Yes.
Inrush current: max. 50 A.
Nominal power consumption: 272.7 VA.
Rated input voltage: 3x 400...3x 500 V AC (wide-range input).
Recommended back-up fuse: 2 A / DI, safety fuse, 2...3 A, Char. C, circuit breaker.
Surge protection: Varistor.
Output:
Capacitive load: unrestricted.
Connection system: Screw connection.
Continous output current @ UNominal: 10 A @ 55 °C, 2.5 A @ 70 °C.
Nominal output current for Unom: 10 A @ 55 °C.
Output power: 240 W.
Output voltage, max.: 28 V.
Output voltage, min.: 22 V.
Output voltage, note: (adjustable via potentiometer).
Overload protection: Yes.
Parallel connection option: yes, max. 5.
Protection against inverse voltage: Yes.
Ramp-up time: ≤ 100 ms.
Rated output voltage: 24 V DC ± 1 %.
Residual ripple, breaking spikes: < 50 mVPP @ 24 V DC, IN.
General data:
AC failure bridging time @ Inom: > 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC.
Degree of efficiency: 88%.
Earth leakage current, max.: 3.5 Ma.
Housing version: Metal, corrosion resistant.
Indication: Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC).
Max. perm. air humidity (operational): 5 %…95 % RH.
Mounting position, installation notice: on terminal rail TS 35.
MTBF:
According to Standard: SN 29500.
Operating time (hours), min.: 1,400,000 h.
Ambient temperature: 25 °C.
Input voltage: 400 V.
Output power: 240 W.
Duty cycle: 100 %.
According to Standard: SN 29500.
Operating time (hours), min.: 601,000 h.
Ambient temperature: 40 °C.
Input voltage: 400 V.
Output power: 240 W.
Duty cycle: 100 %.
Power factor (approx.): > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC.
Power loss, idling: 8 W.
Power loss, nominal load: 26 W.
Protection against over-heating: Yes.
Protection against reverse voltages from the load: 30…35 V DC.
Protection degree: IP20.
Short-circuit protection: Yes.
Surge voltage category: II.
EMC / shock / vibration:
Interference immunity test acc. to: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips).
Limiting of mains voltage harmonic currents: According to EN 61000-3-2.
Noise emission in accordance with EN55032: Class B.
Shock resistance IEC 60068-2-27: 15 g In all directions.
Vibration resistance IEC 60068-2-6: 1 g according to EN 50178.
Insulation coordination:
Insulation voltage input / earth: 2 kV.
Insulation voltage output / earth: 0.5 kV.
Insulation voltage, input/output: 3 kV.
Pollution severity: 2.
Protection class: I, with PE connection.
Surge voltage category: II.
Electrical safety (applied standards):
Electrical machine equipment: Acc. to EN60204.
For use with electronic equipment: Acc. to EN50178 / VDE0160.
Protection against dangerous shock currents: Acc. to VDE0106-101.
Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
Safety transformers for switch-mode power supplies: According to EN 61558-2-16.
Connection data (input):
Conductor cross-section, AWG/kcmil, max.: 12.
Conductor cross-section, AWG/kcmil, min.: 26.
Conductor cross-section, flexible, min.: 0.5 mm².
Conductor cross-section, rigid, max.: 6 mm².
Conductor cross-section, rigid, min.: 0.5 mm².
Connection system: Screw connection.
Number of terminals: 4 for L1/L2/L3/PE.
Tightening torque, max.: 0.6 Nm.
Tightening torque, min.: 0.5 Nm.
Wire connection cross section, flexible (input), max.: 2.5 mm².
Connection data (output):
Conductor cross-section, AWG/kcmil, max.: 12.
Conductor cross-section, AWG/kcmil, min.: 26.
Conductor cross-section, flexible, max.: 2.5 mm².
Conductor cross-section, flexible, min.: 0.5 mm².
Conductor cross-section, rigid, max.: 6 mm².
Conductor cross-section, rigid, min.: 0.5 mm²
Connection system: Screw connection.
Number of terminals: 6 (++,--,13,14).
Tightening torque, max.: 0.6 Nm.
Tightening torque, min.: 0.5 Nm.
Signalling:
Contact load (NO contact): max. 30 V DC / 1 A.
Floating contact: Yes.
Relay on/off: Output voltage >21.6 V DC/ <20.4 V DC, overload.
Approbations:
Certificate no. (cULus): E258476.
Certificate No. (cURus): E255651.
Institute (cULus): CULUS.
Institute (cURus): CURUS.
